OSL Library

The Nudron Shelf

OSL 001 · Varun Mehta

A Modular Shelving structural system, created to reduce the material usage in the vertical and horizontal members of a shelf. This lightweight and transparent design consists of 6 different repetitve parts, composed in a single 8’x4’ plywood sheet.

The method of construction does not require tools, glue or screws and is fairly easy to assemble.

The compilation below consists of the specifications and an assembly guide of the design. The images can be saved and printed for reference.

Designed for: Nudron.com HQ, Mumbai

• 1875(l) x 395(b) x 830(h) mm
• Plywood (12.5mm thick)
• DXF

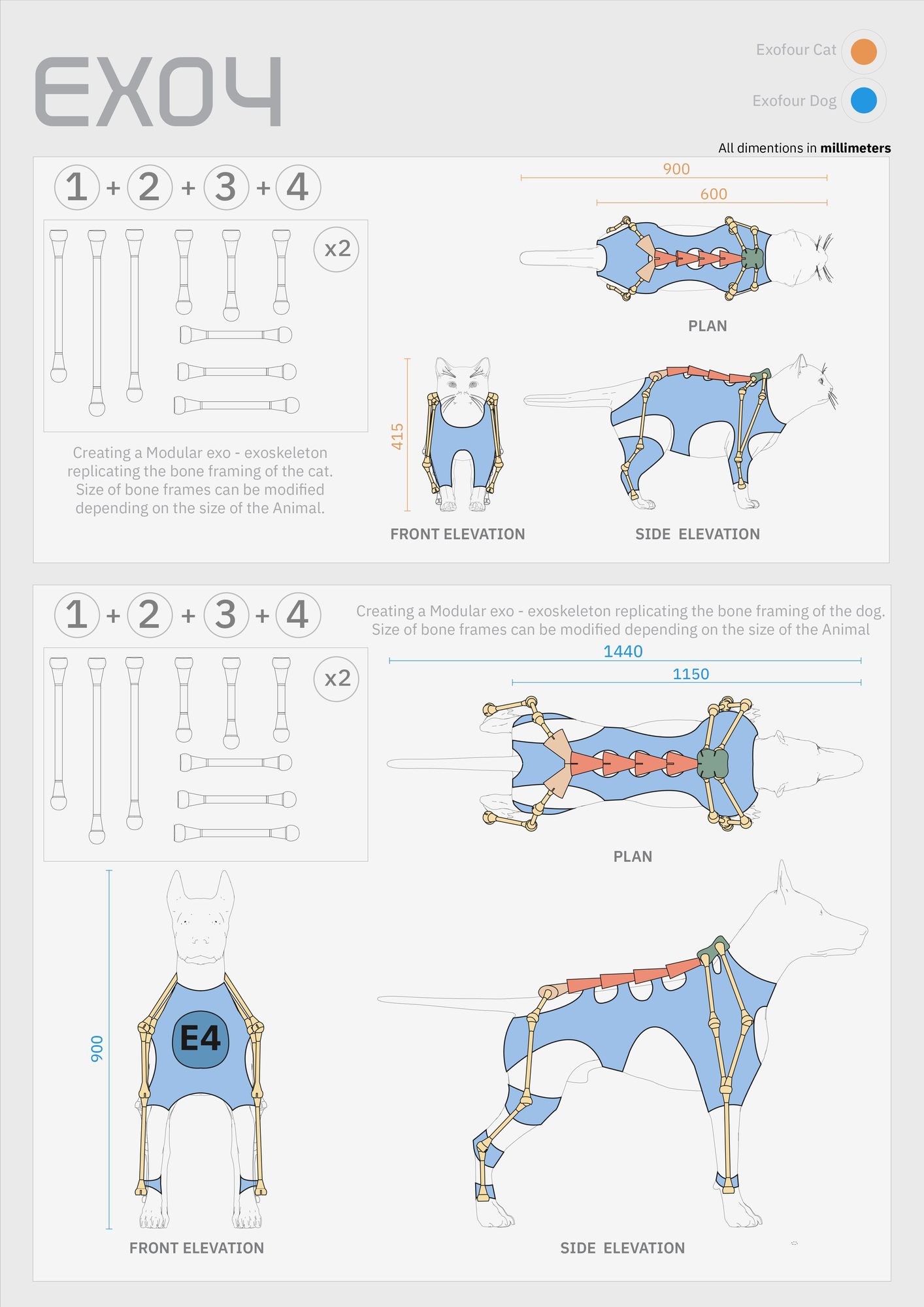

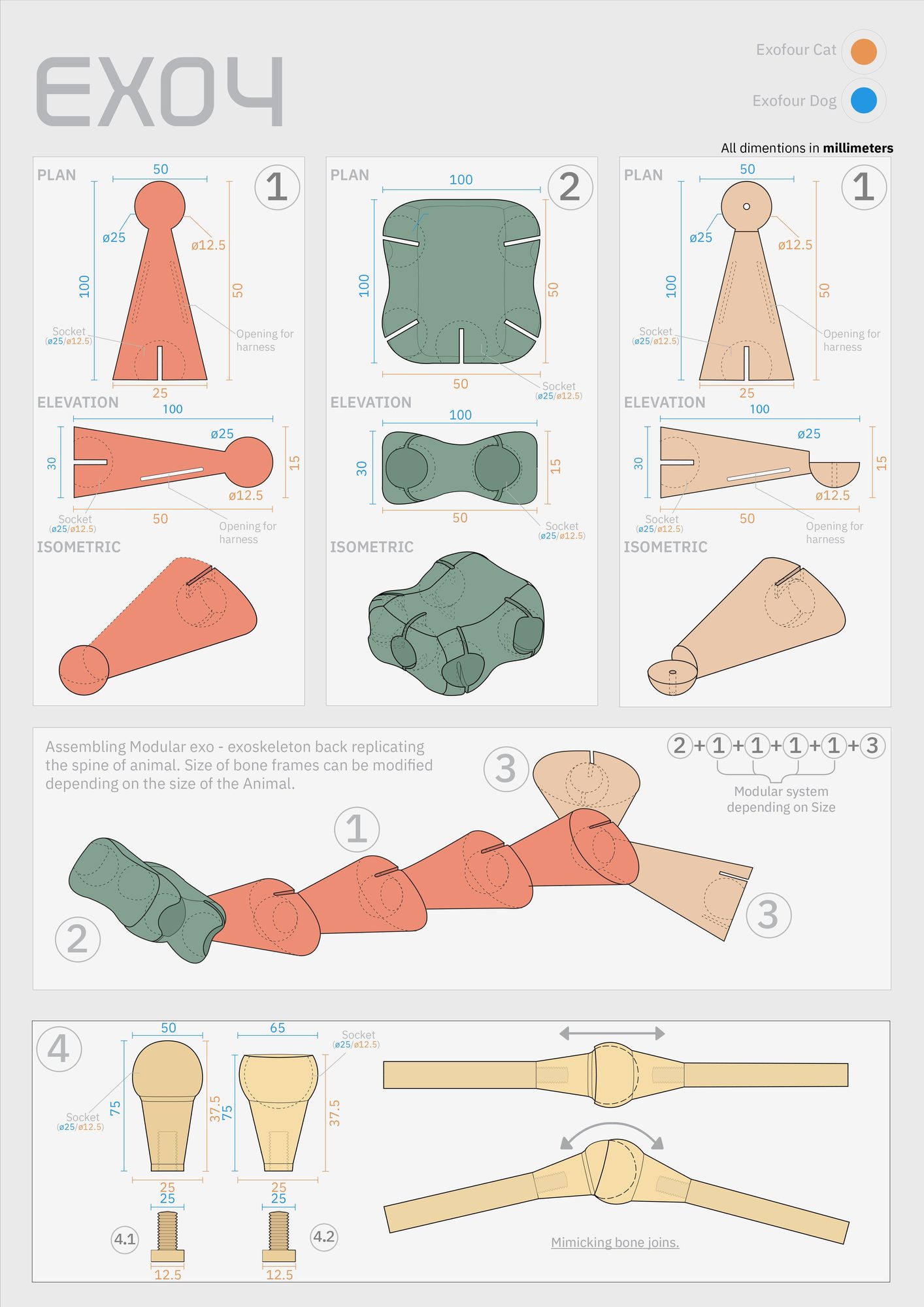

EXO.4

OSL 002 · Faizan Khatri

EXO.4 is a DIY modular exoskeleton system for specially abled animals facilitating natural movement mimicing mobility as well as physio stimulations

The House of Cards

OSL 003 · Yash Pendse

Build before you discard.

All you need is a deck of plastic playing cards.

These playing cards gives you a scope to build a bird-house to hang outside your window for sheltering small birds like sparrows.

13 combinations of interlocked cards can house a bird.

Stack and glue 4 cards for each combination which will give sufficient strength and stability to the structure. Thus, modelling up the deck to its full use.

• 6” CUSQ
• Playing Cards
• PDF

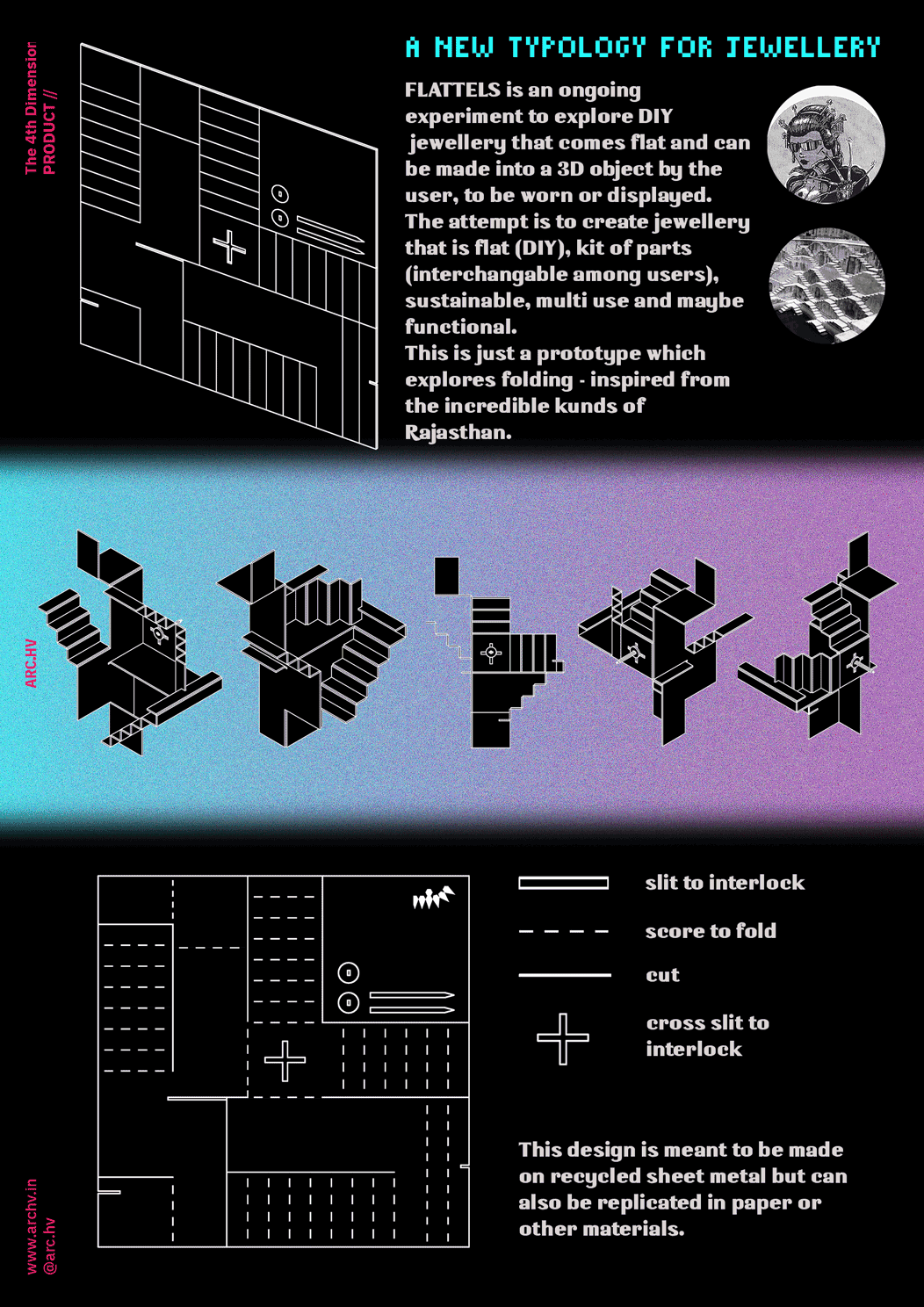

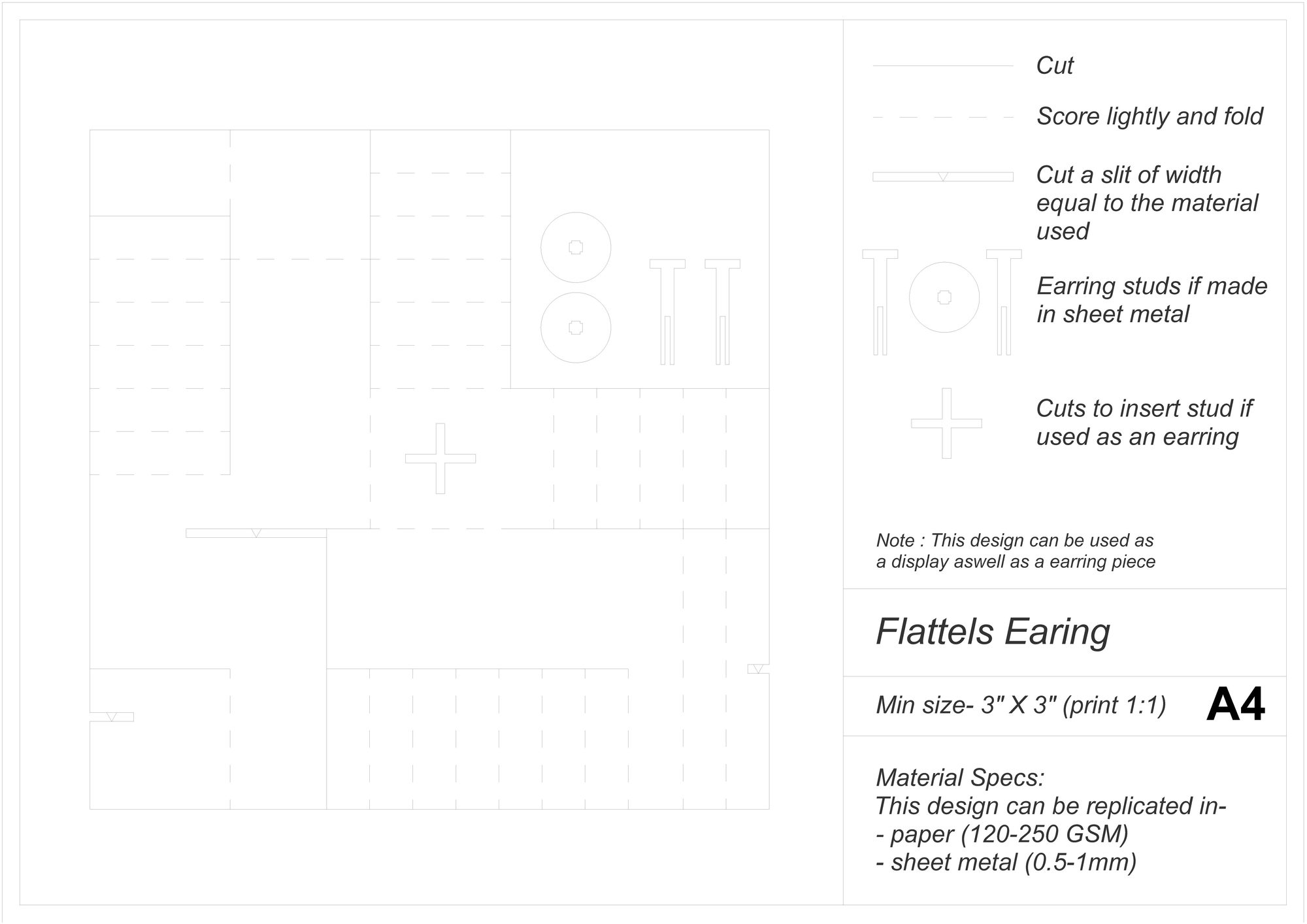

Flattels

OSL 004 · Arko Saha

Paper Jewellery.

• 1.5”
• 200GSM Paper
• PDF

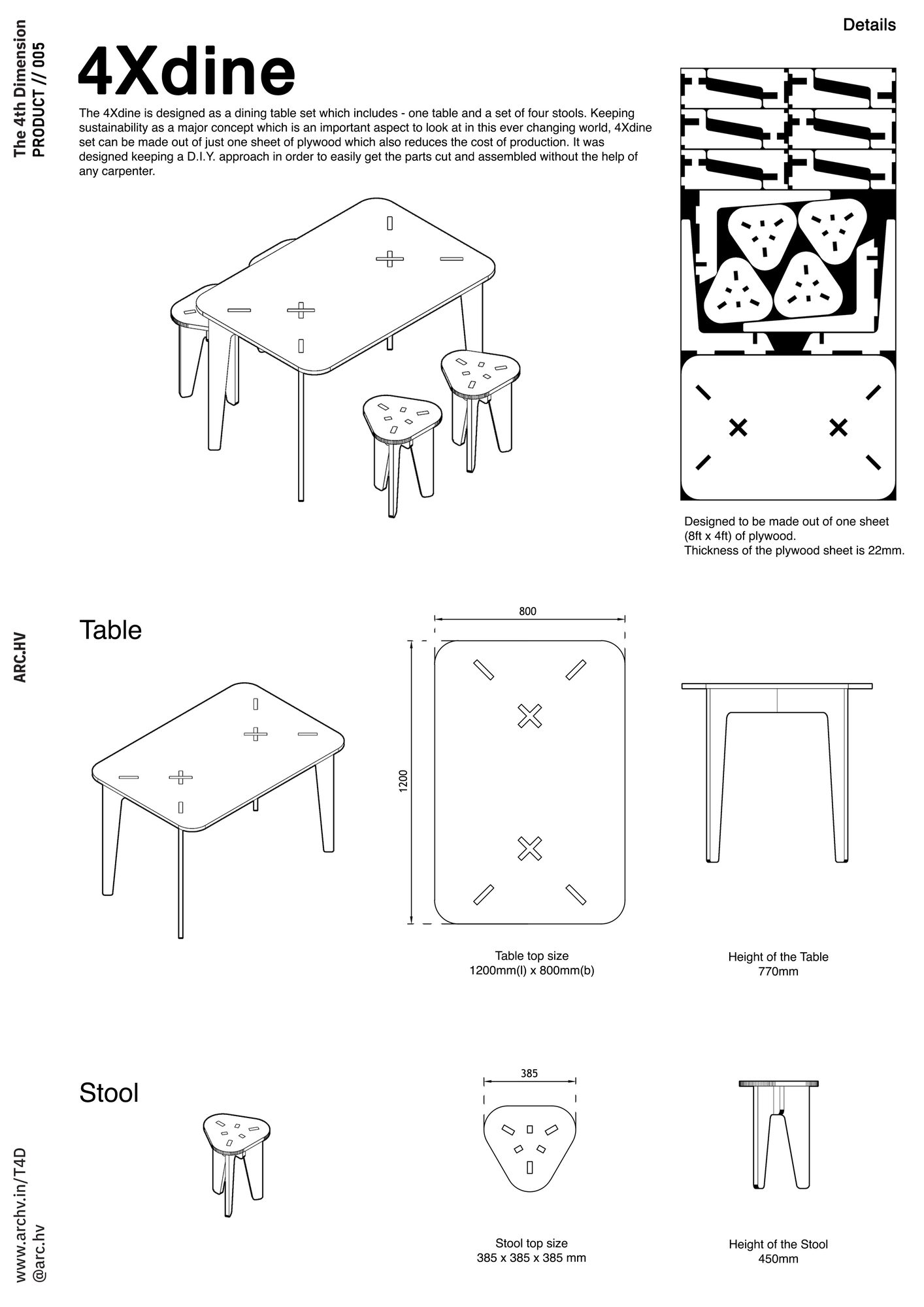

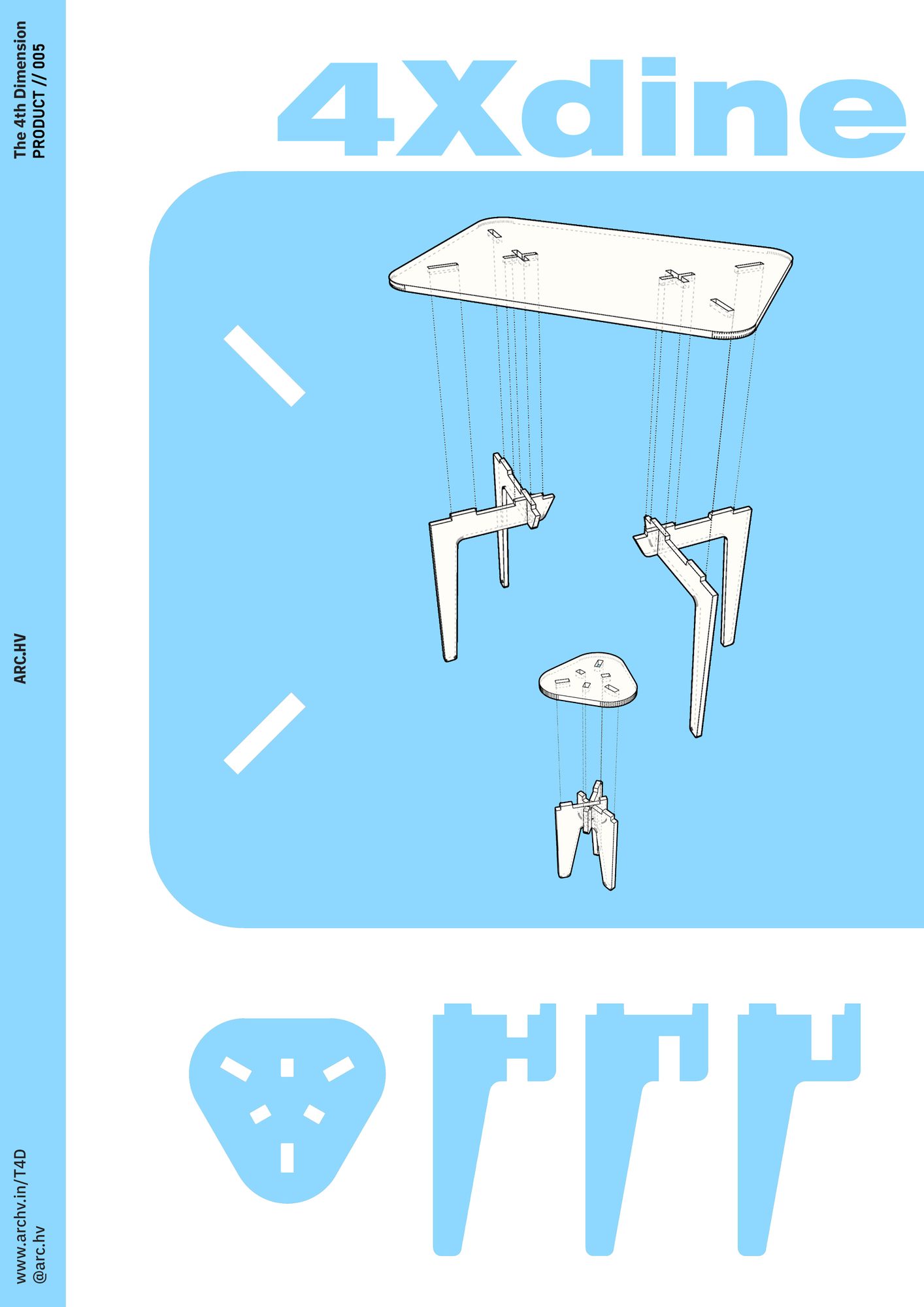

4XDINE

OSL 005 · Nayan Mote

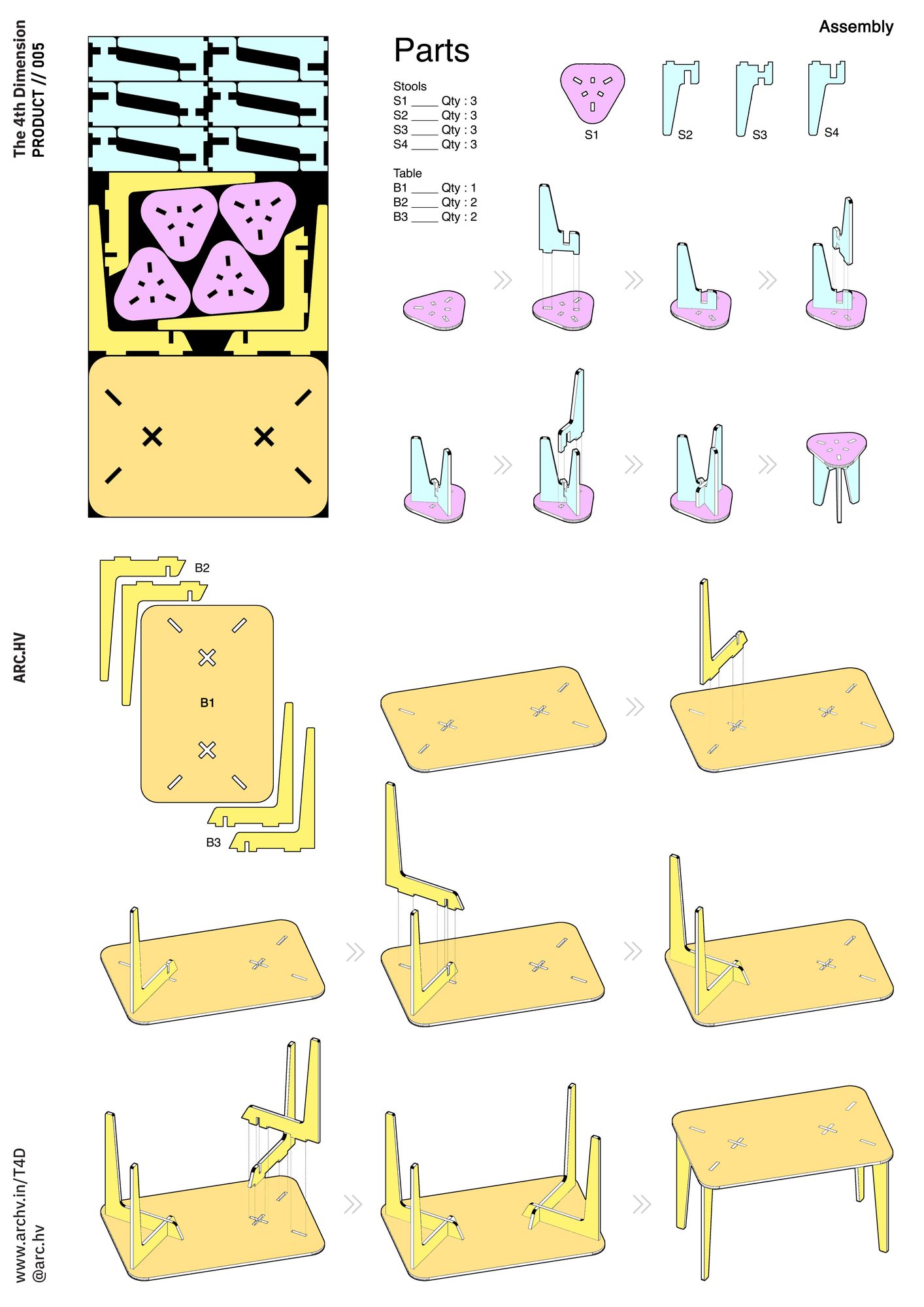

4Xdine was designed keeping sustainability in mind where, the least amount of material was used with minimum wastage, to create a set of furniture that can be used by as many people as possible. It comprises of one table and four stools made out of just one sheet of plywood. The 2D parts made of this sheet material make it easier to transport.

• 1200(l) x 800(b) x 770(h) mm
• 18mm thk Plywood
• DXF

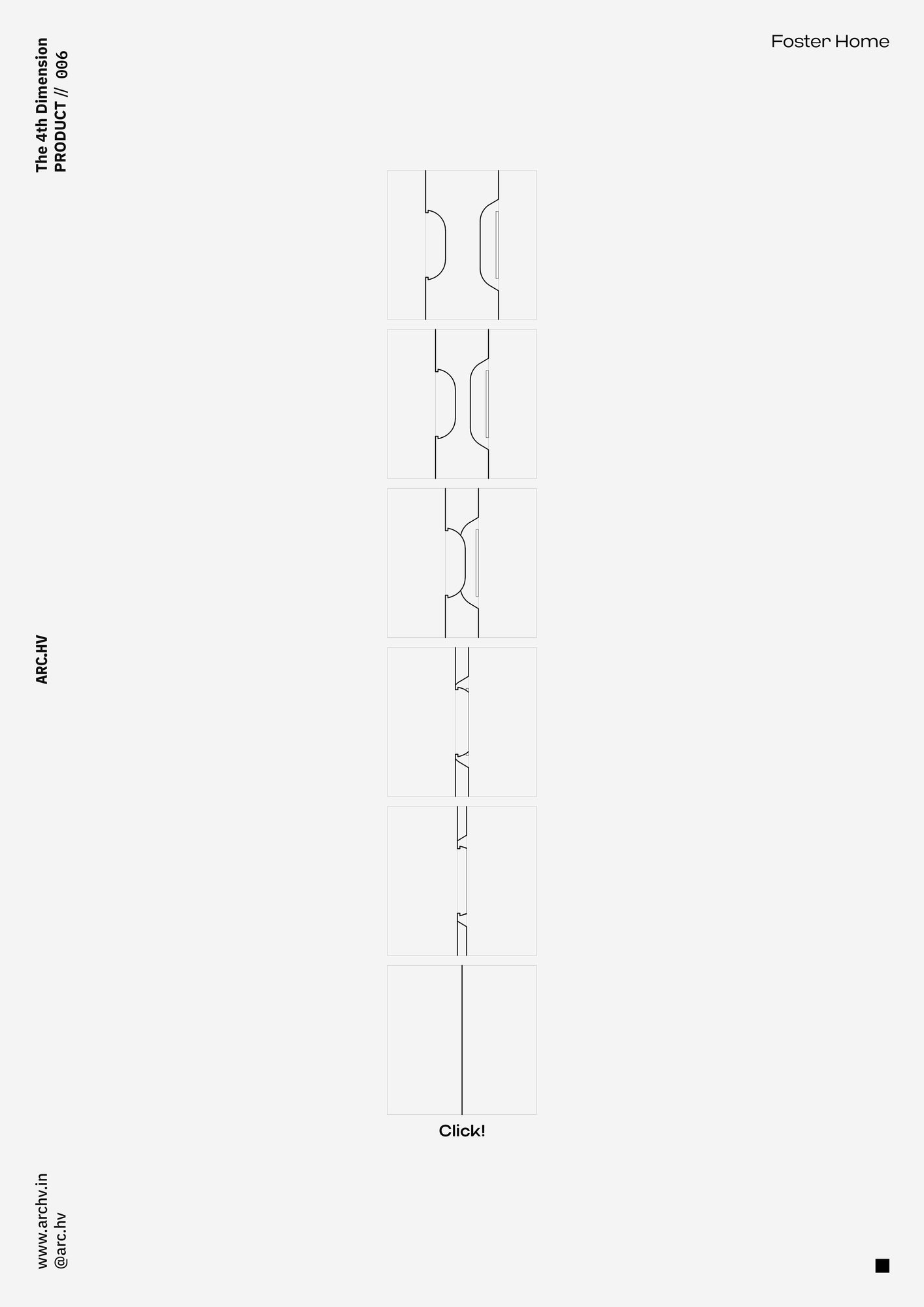

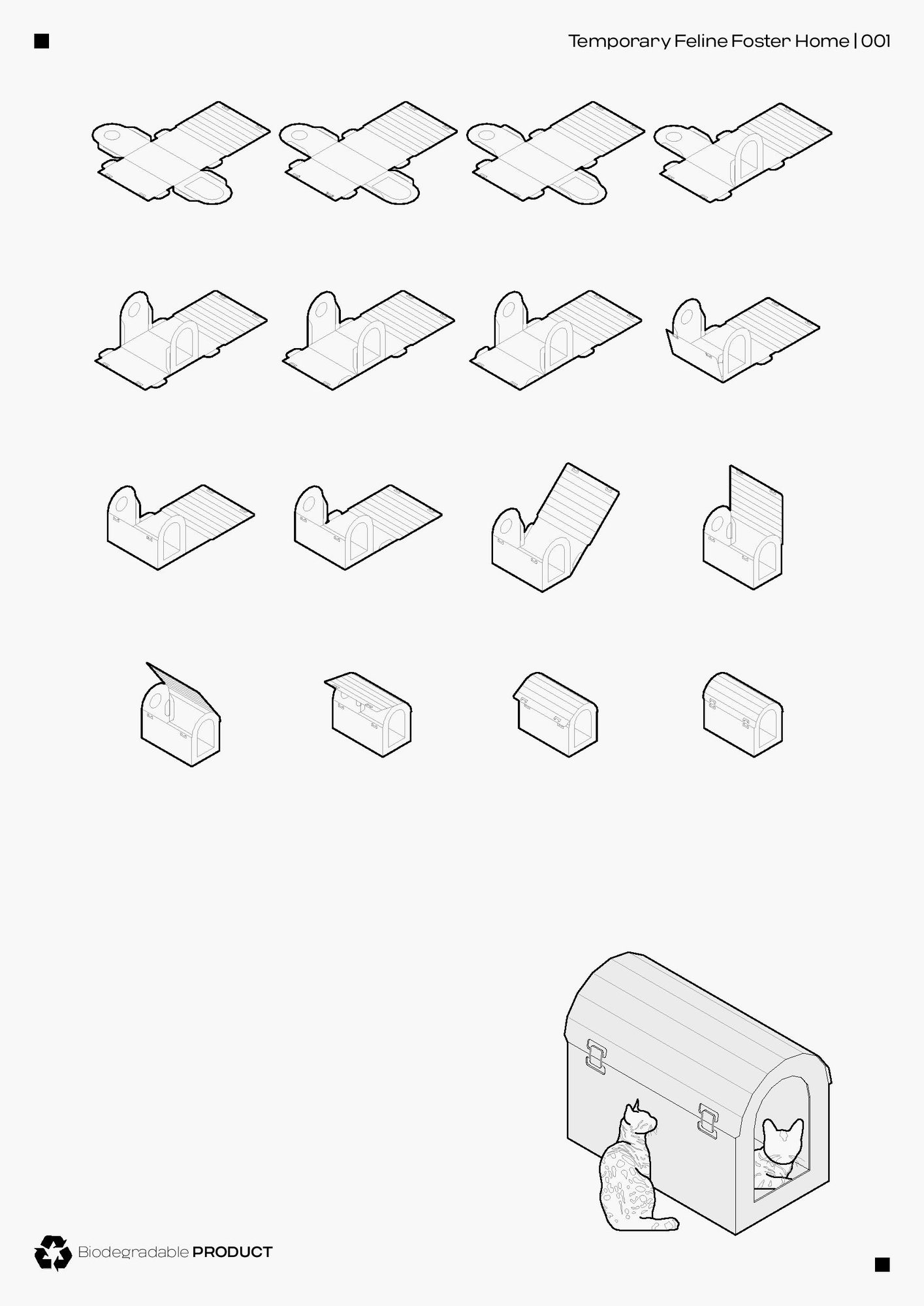

Temporary Feline Foster Home

OSL 006 · Shashank Ahuja

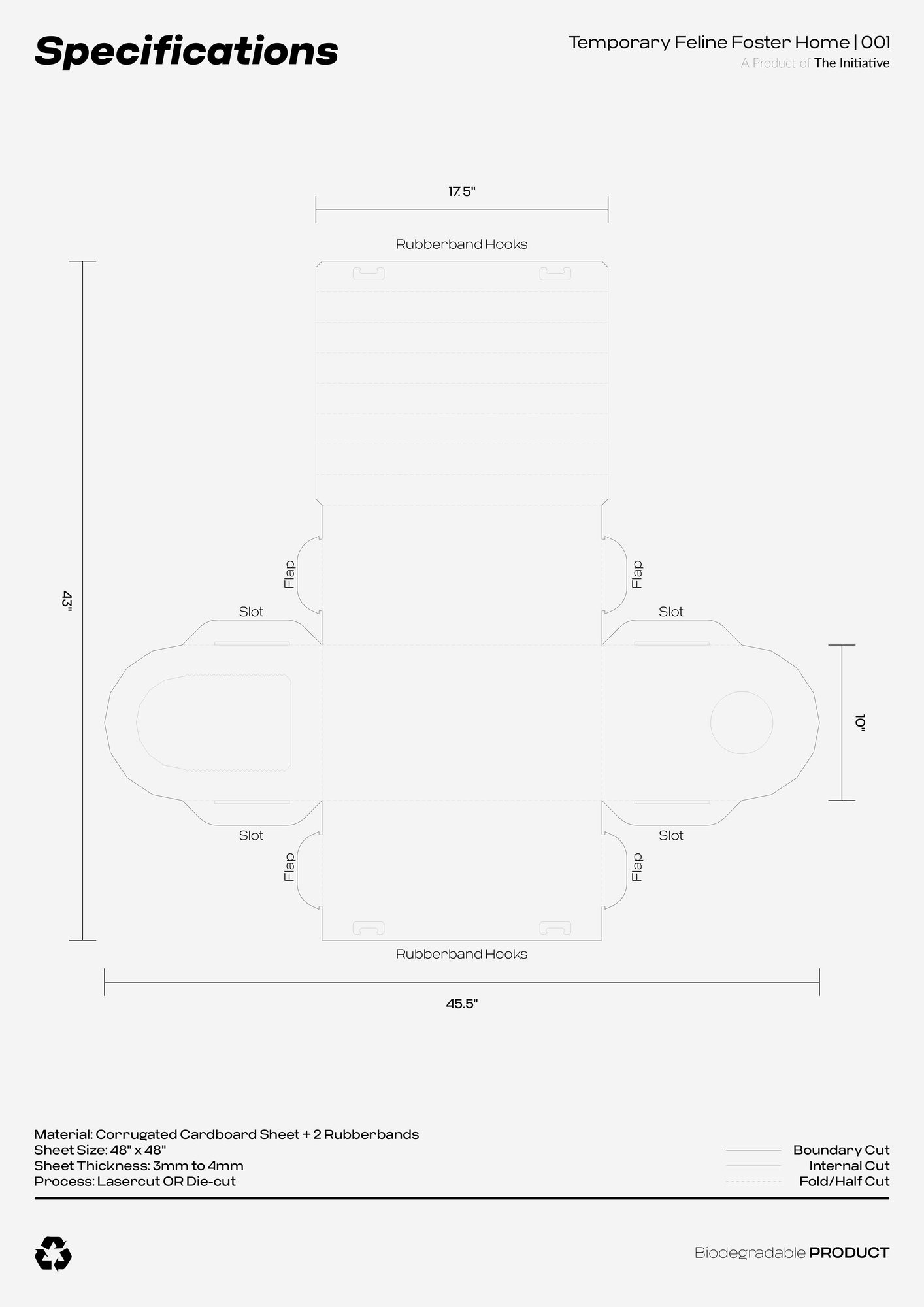

A temporary foster home for rescue cats that have been designed to have minimal carbon-footprint, from the choice of material to the manufacturing process and minimal transport requirements and can be easily assembled without any tools or glue. This product is made from recycled paper and is biodegradable.

• 450(l) x 250(b) x 350(h) mm
• Corrugated Card (2.5mm thick)
• DXF

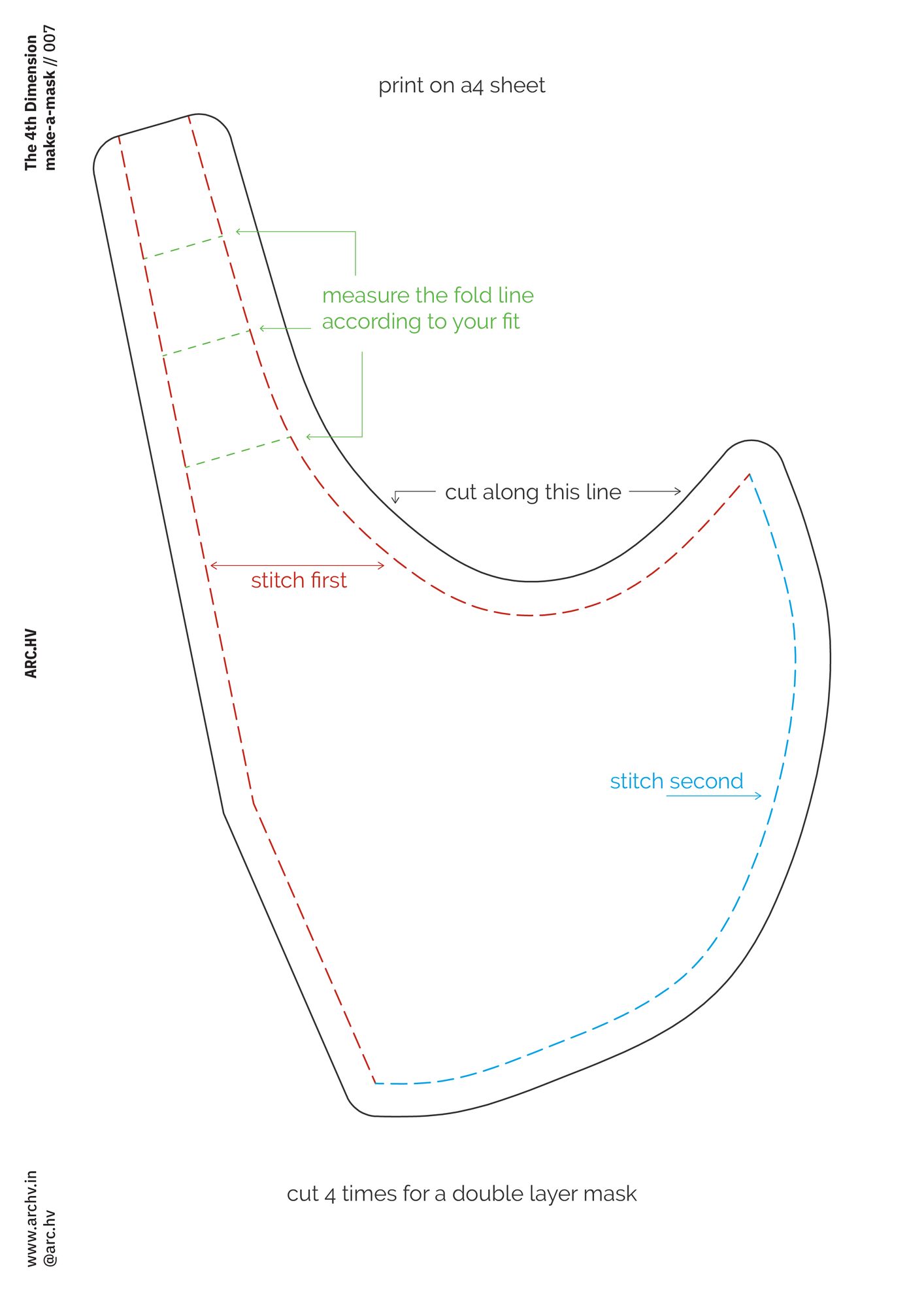

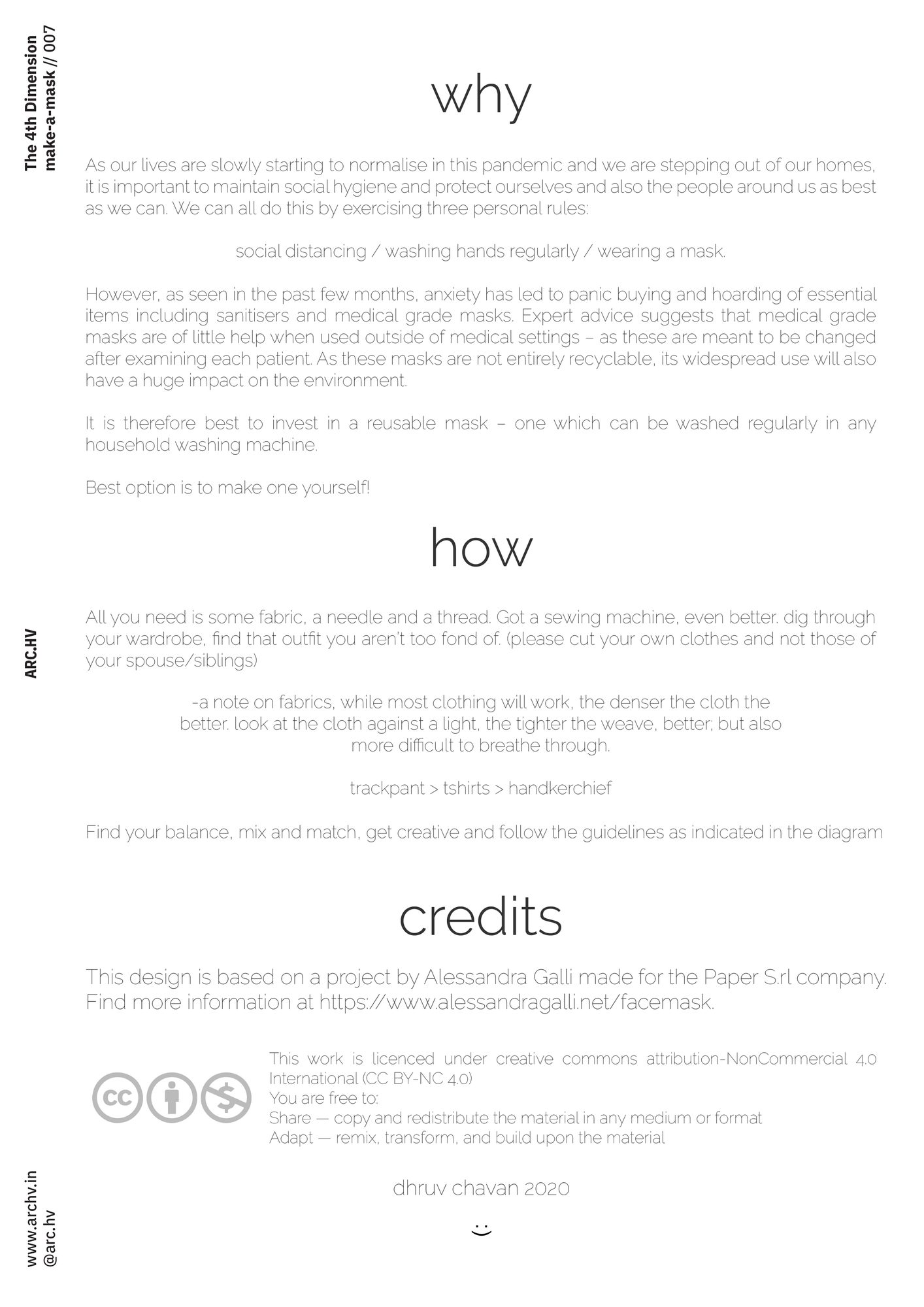

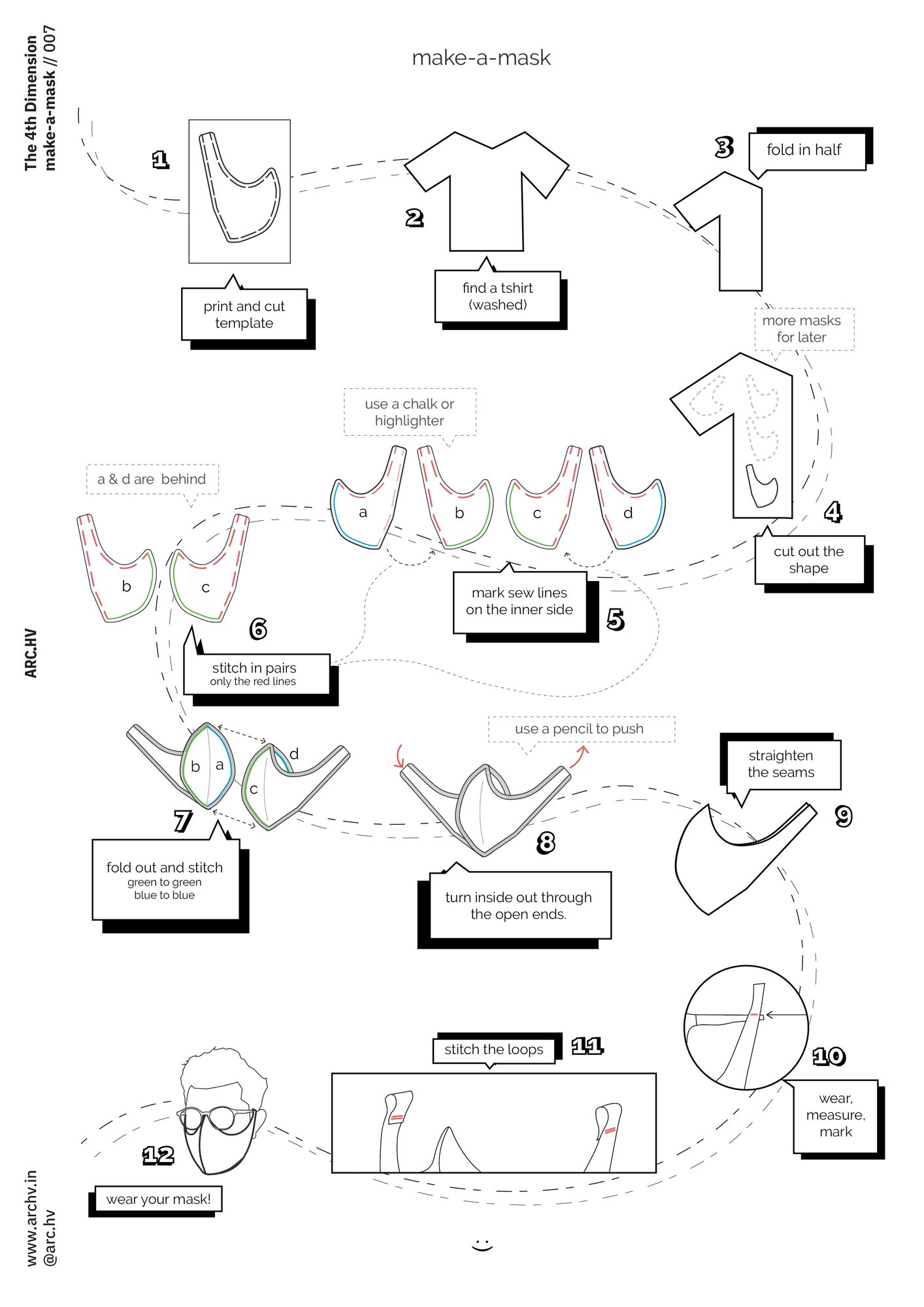

Make a mask

OSL 007 · Dhruv Chavan

A mask that attaches to the frame of specs or sunglasses. Encourage making instead of hoarding. Have fun, stay safe, make-a-mask.

• NA
• Reused Fabric
• PDF

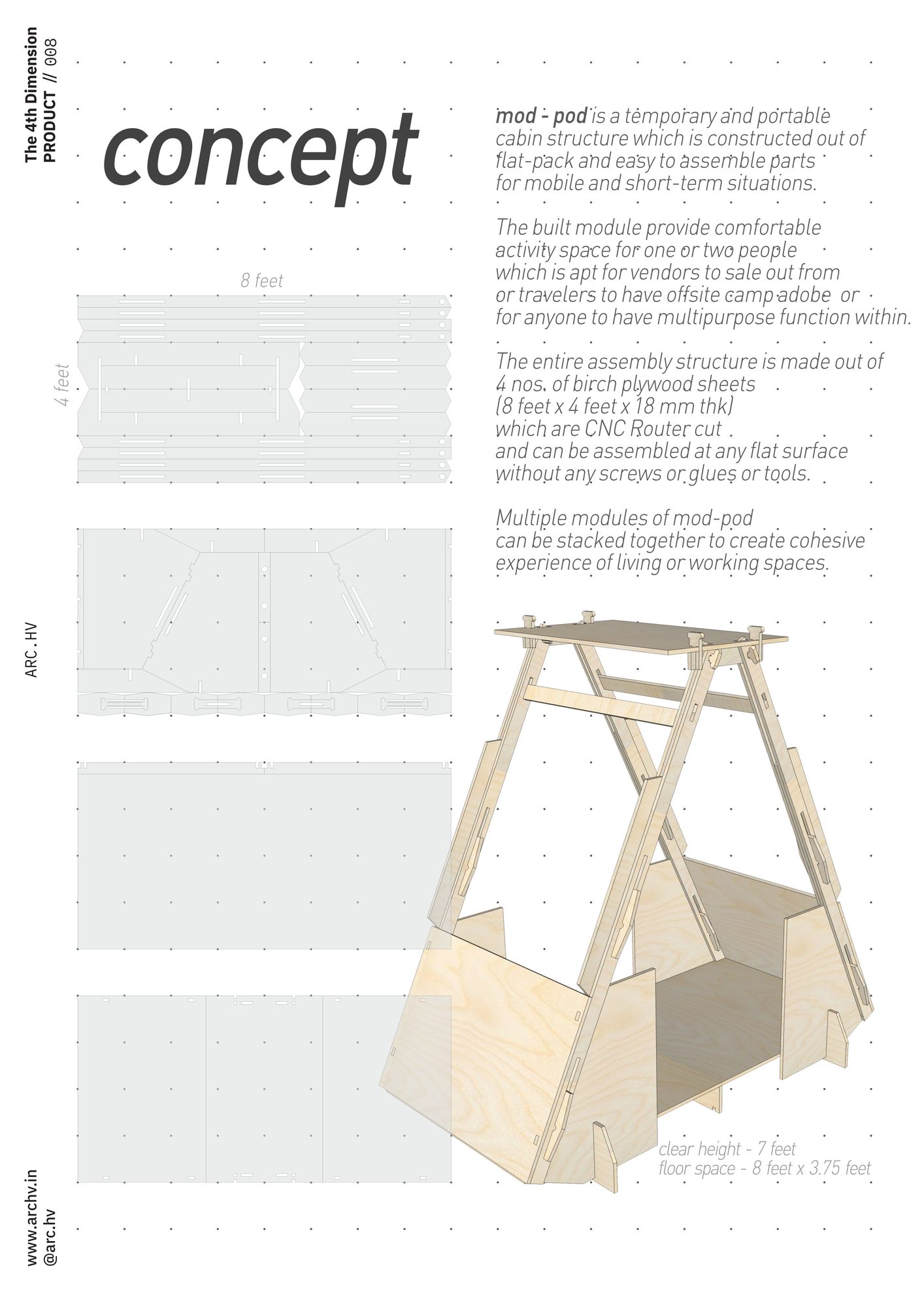

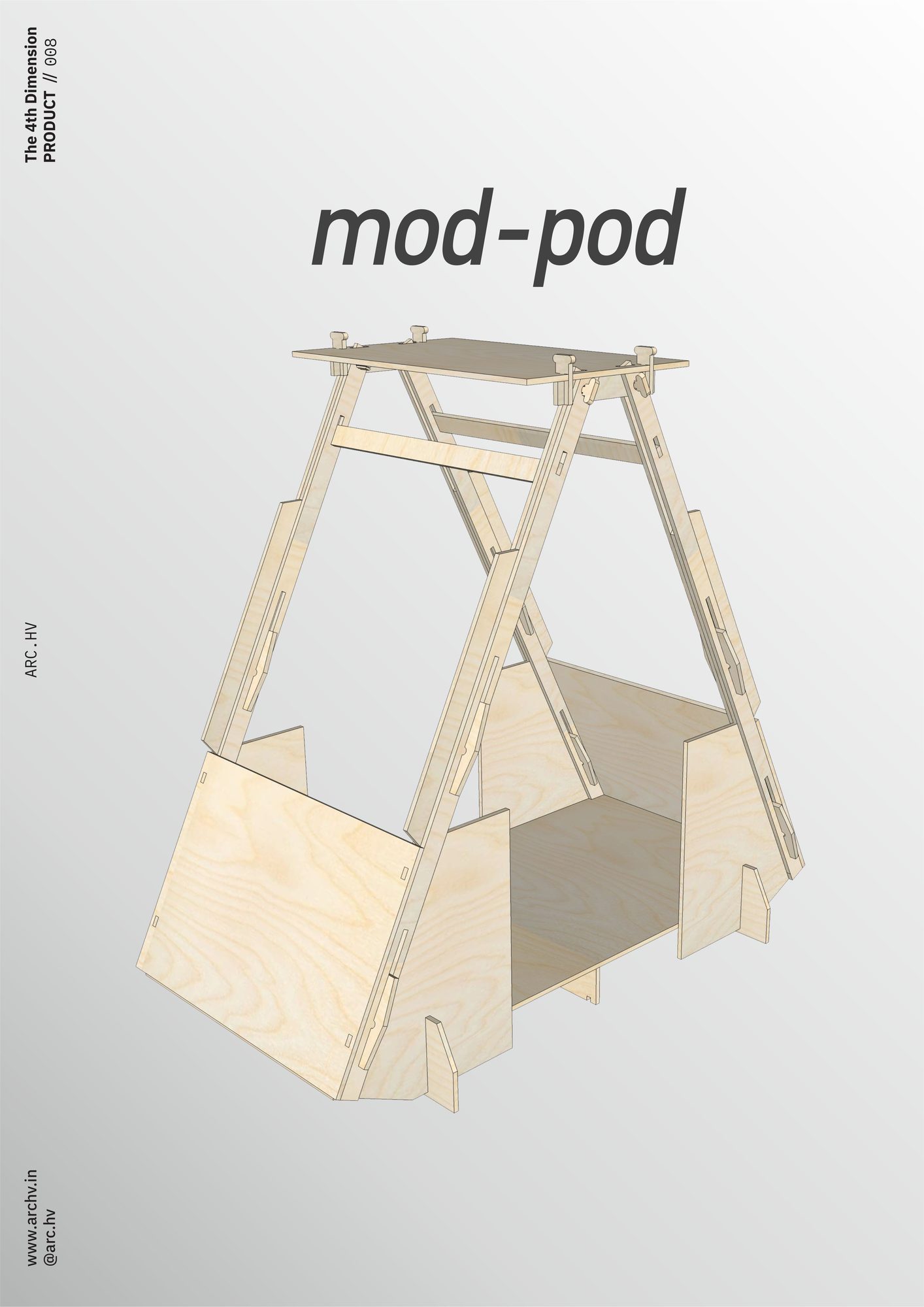

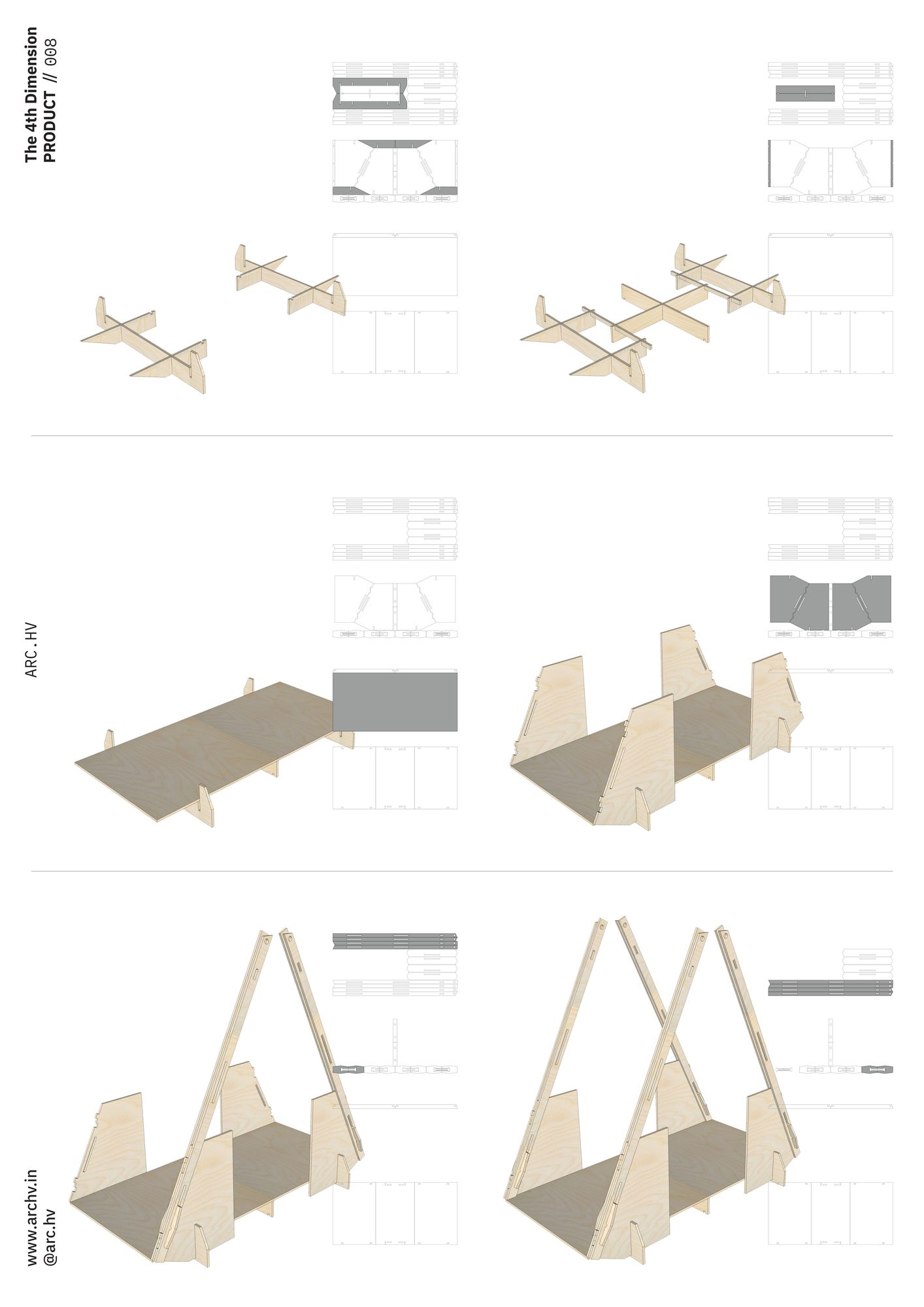

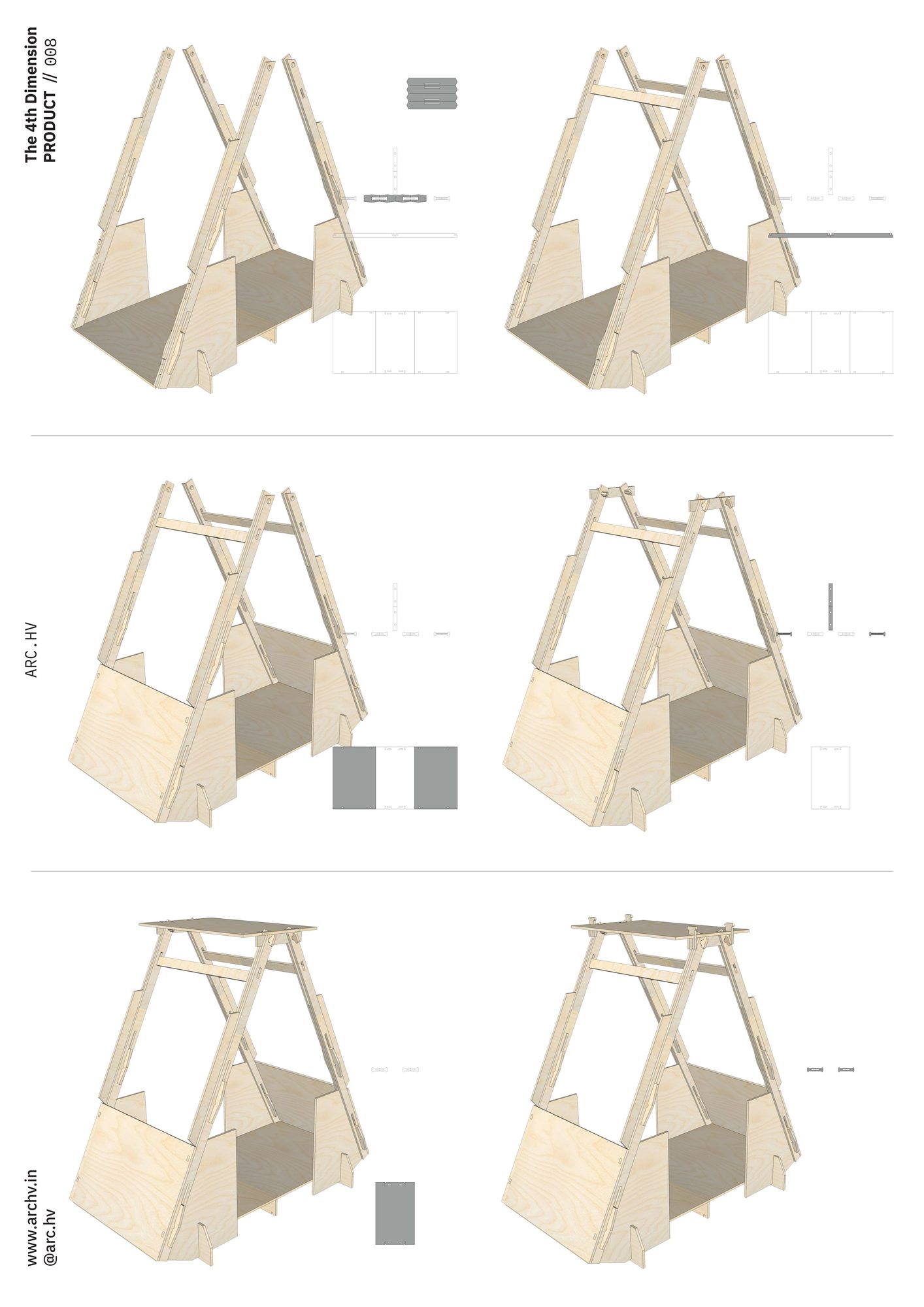

Mod Pod

OSL 008 · Siddhesh Kadam

mod - pod is a temporary and portable

cabin structure which is constructed out of

flat-pack and easy to assemble parts

for mobile and short-term situations.

The built module provide comfortable

activity space for one or two people

which is apt for vendors to sale out from

or travellers to have offsite camp adobe or

for anyone to have multipurpose function within.

The entire assembly structure is made out of

4 nos. of birch plywood sheets

(8 feet x 4 feet x 18 mm thk)

which are CNC Router cut

and can be assembled at any flat surface

without any screws or glues or tools.

Multiple modules of mod-pod

can be stacked together to create a cohesive

experience of living or working spaces.

• 8’(l) x 3.75’(b) x 7’(h)
• Plywood
• DXF

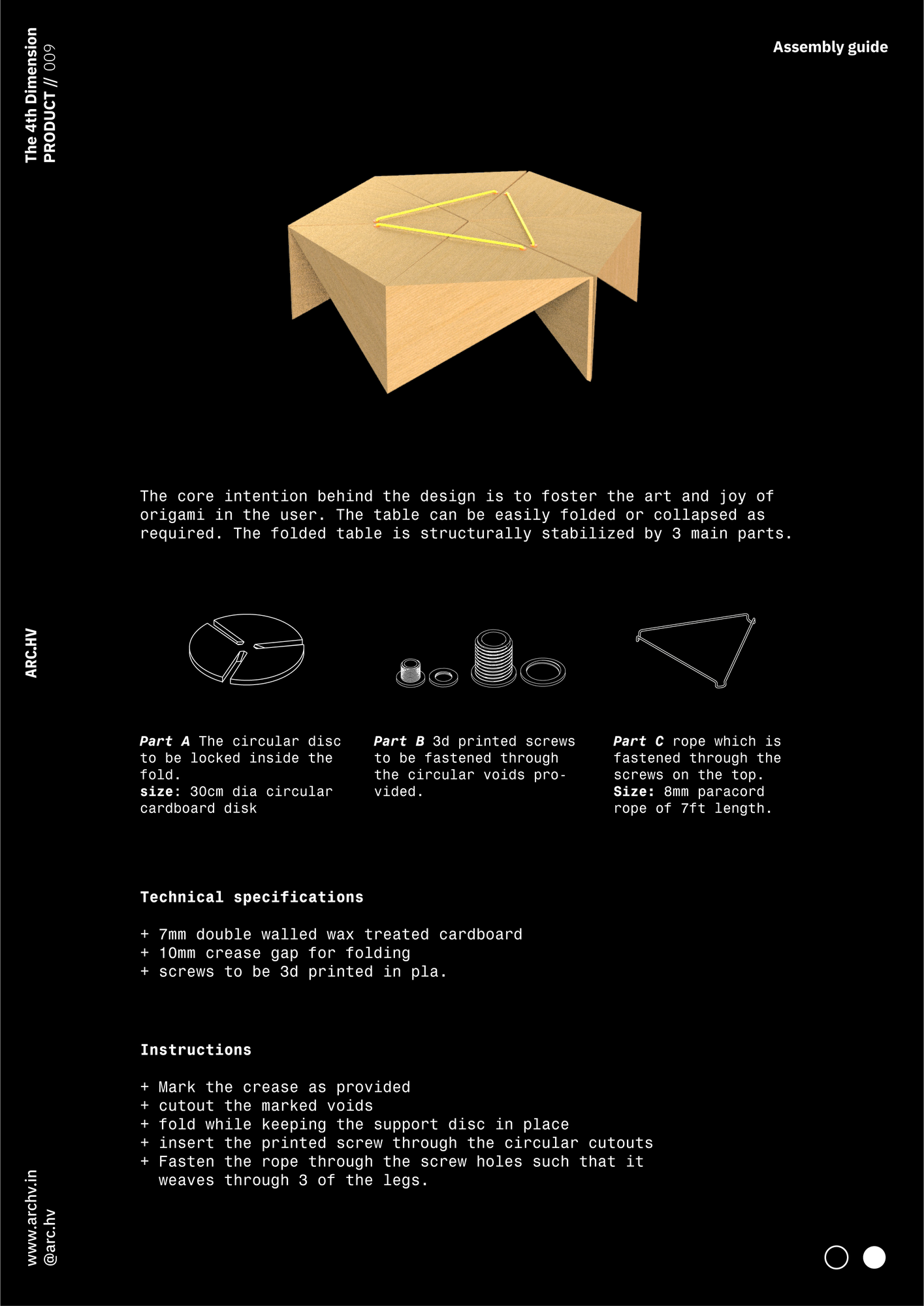

Pop-Up Table

OSL 009 · Ashish NR

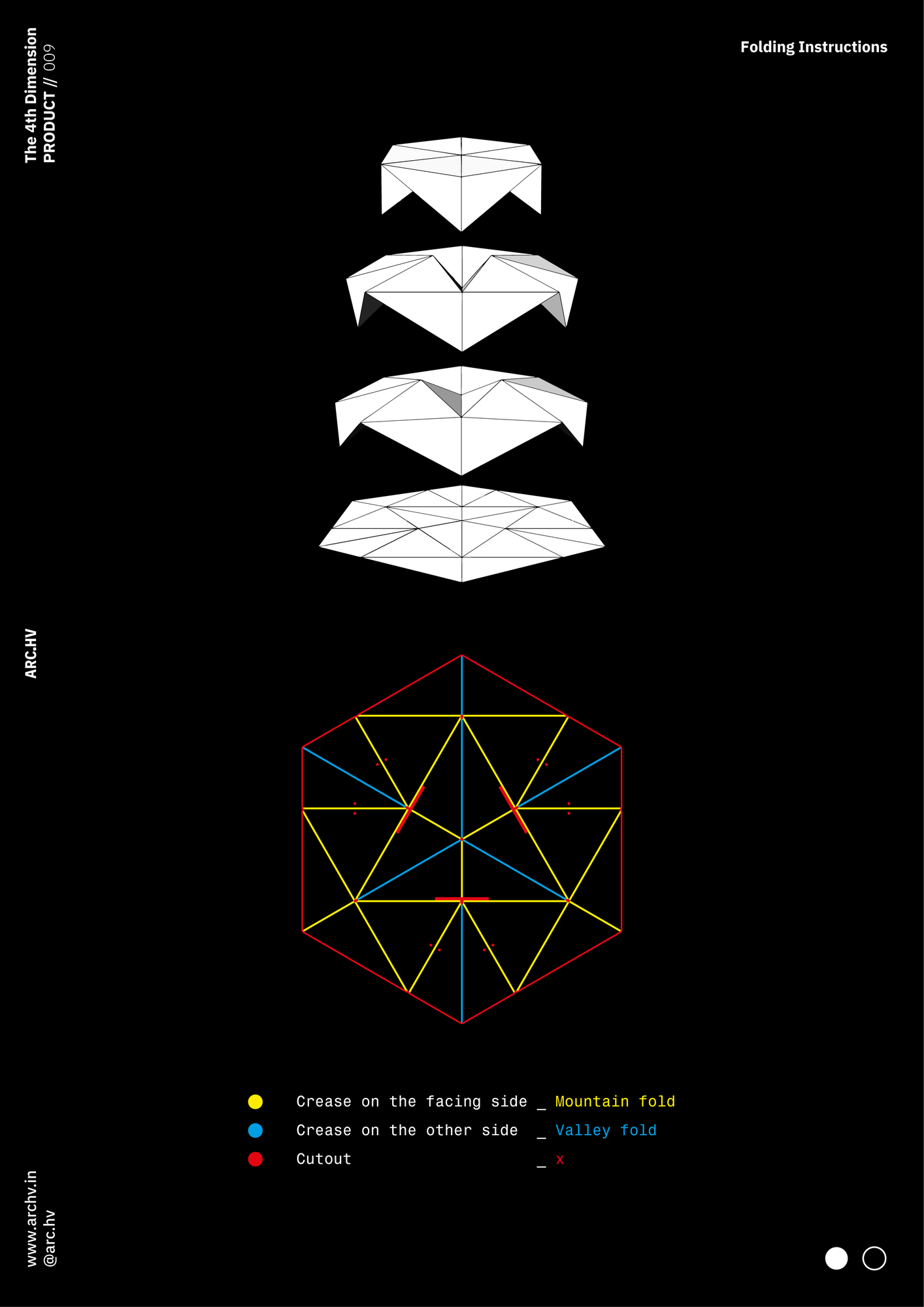

An origami foldable table that can be easily assembled or collapsed into a flat sheet as required.

• 1000(l) x 1200(b) x 350(h) mm
• 7MM thk Corrugated Cardboard
• DWG + STL

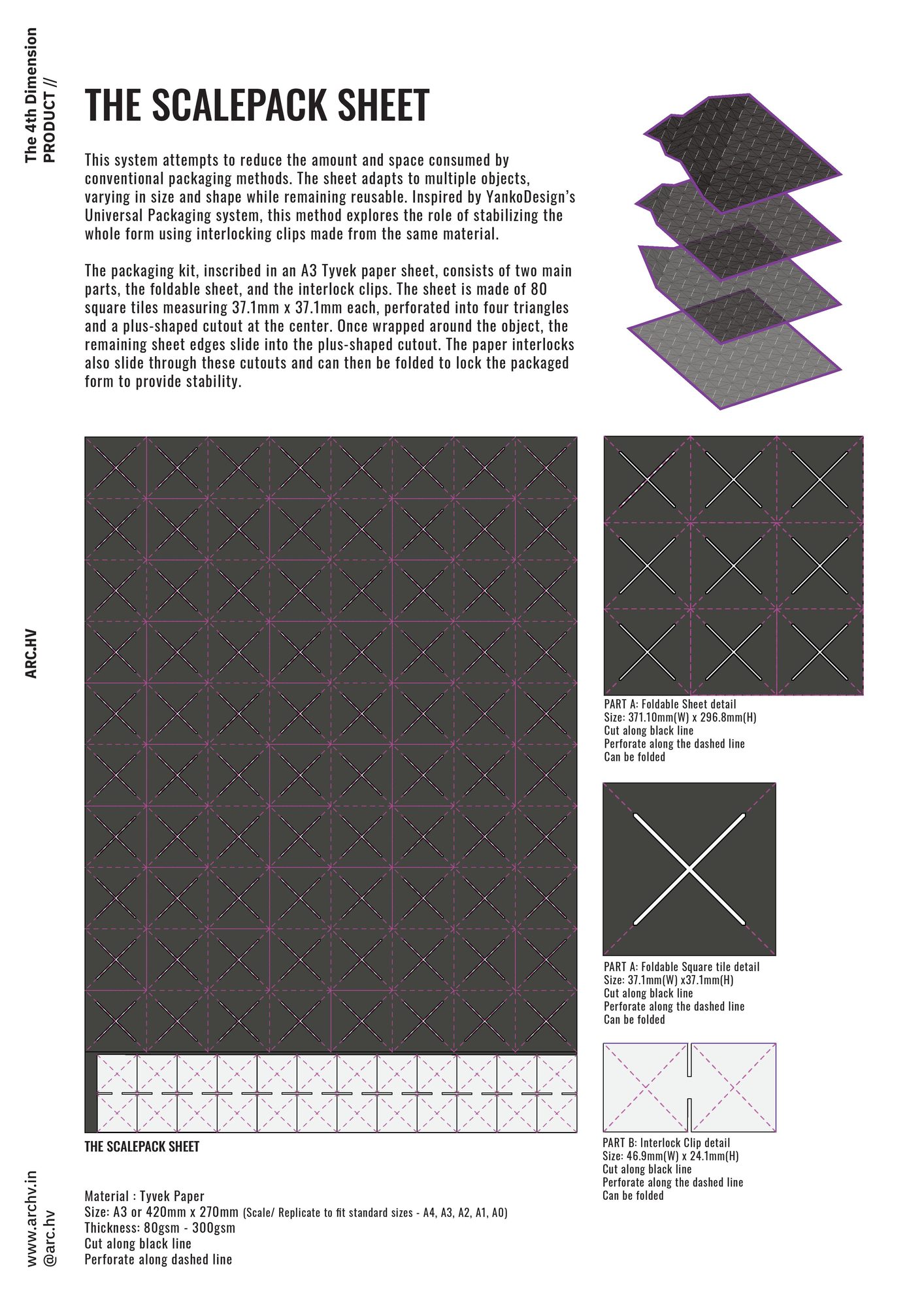

Scale Pack Sheet

OSL 010 · Saumya Mutneja

This system attempts to reduce the amount and space consumed by conventional packaging methods. The sheet adapts to multiple objects, varying in size and shape while remaining reusable. Inspired by YankoDesign’s Universal Packaging system, this method explores the role of stabilizing the whole form using interlocking clips made from the same material.

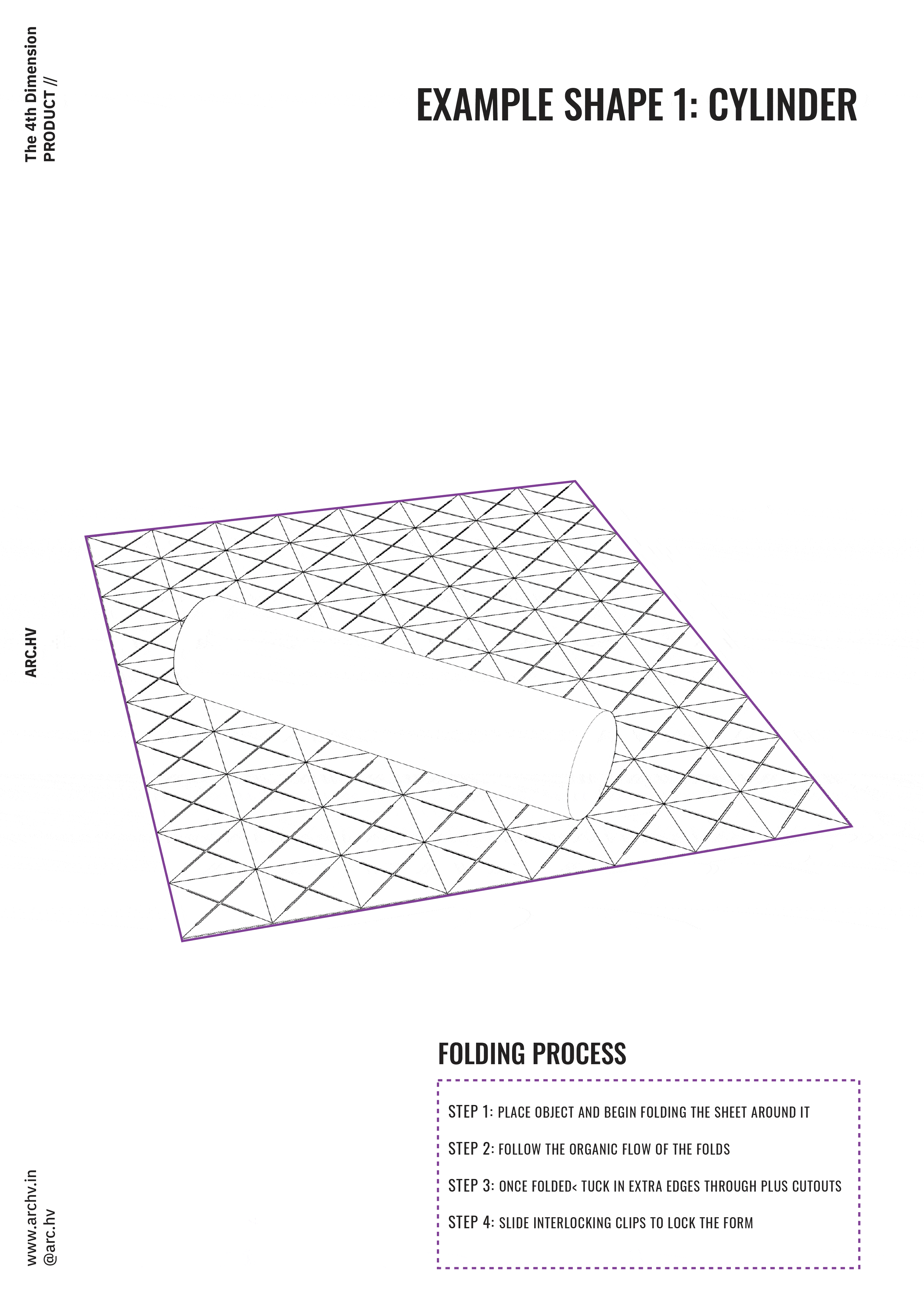

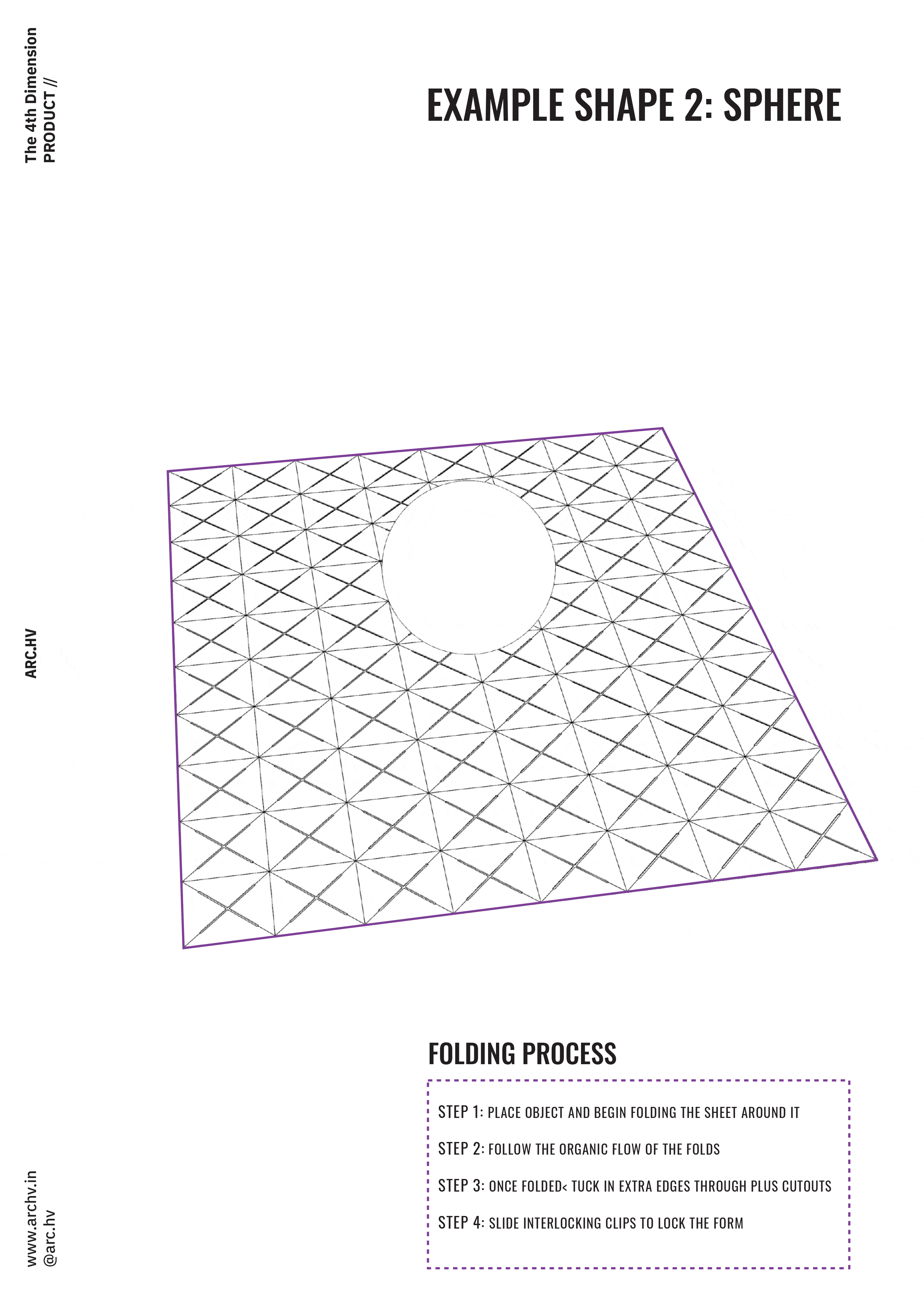

The packaging kit, inscribed in an A3 Tyvek paper sheet, consists of two main parts, the foldable sheet, and the interlock clips. The sheet is made of 80 square tiles measuring 37.1mm x 37.1mm each, perforated into four triangles and a plus-shaped cutout at the center. Once wrapped around the object, the remaining sheet edges slide into the plus-shaped cutout. The paper interlocks also slide through these cutouts and can then be folded to lock the packaged form to provide stability.

• A3
• Tyvek paper
• PDF and DXF

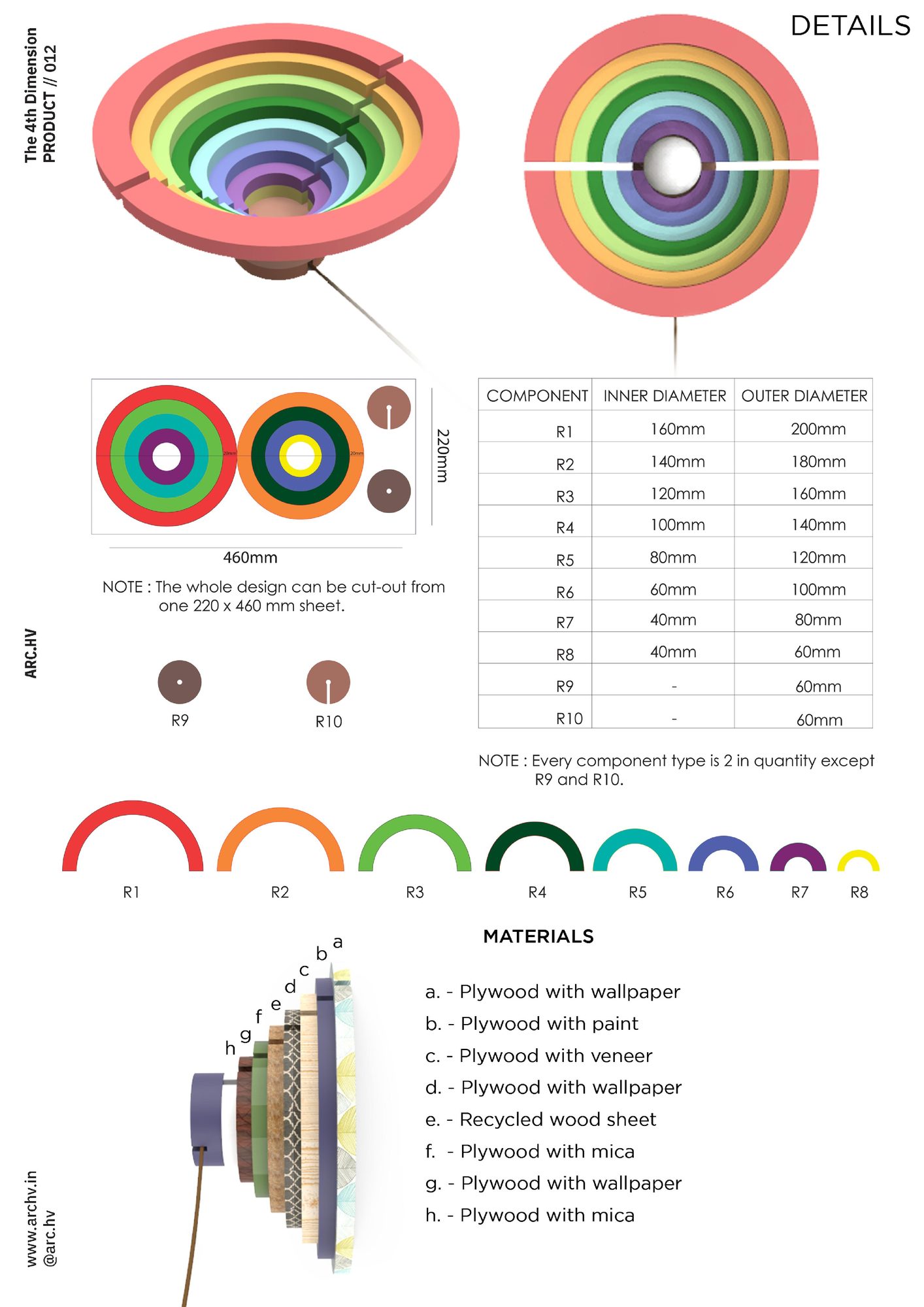

Step Wall Light

OSL 012 · Harshita Jhamtani

A stacked wall light created by using plywood (also the perfect solution to the leftover materials on interior sites). The light can be made from a wide range of materials with endless possibilities. The product comes together in 8 parts which are mirrored and a base plate, all composed in a single sheet of plywood.

Requirements: Laser cutting of all the parts and assembling and stacking using glue/nails.

The compilation below consists of the specifications and an assembly guide of the design. The images can be saved and printed for references.

• 200mm x 200mm
• Refurbished Plywood
• DXF

Blinkers

OSL 013 · Rahul Malandkar (apt-studio)

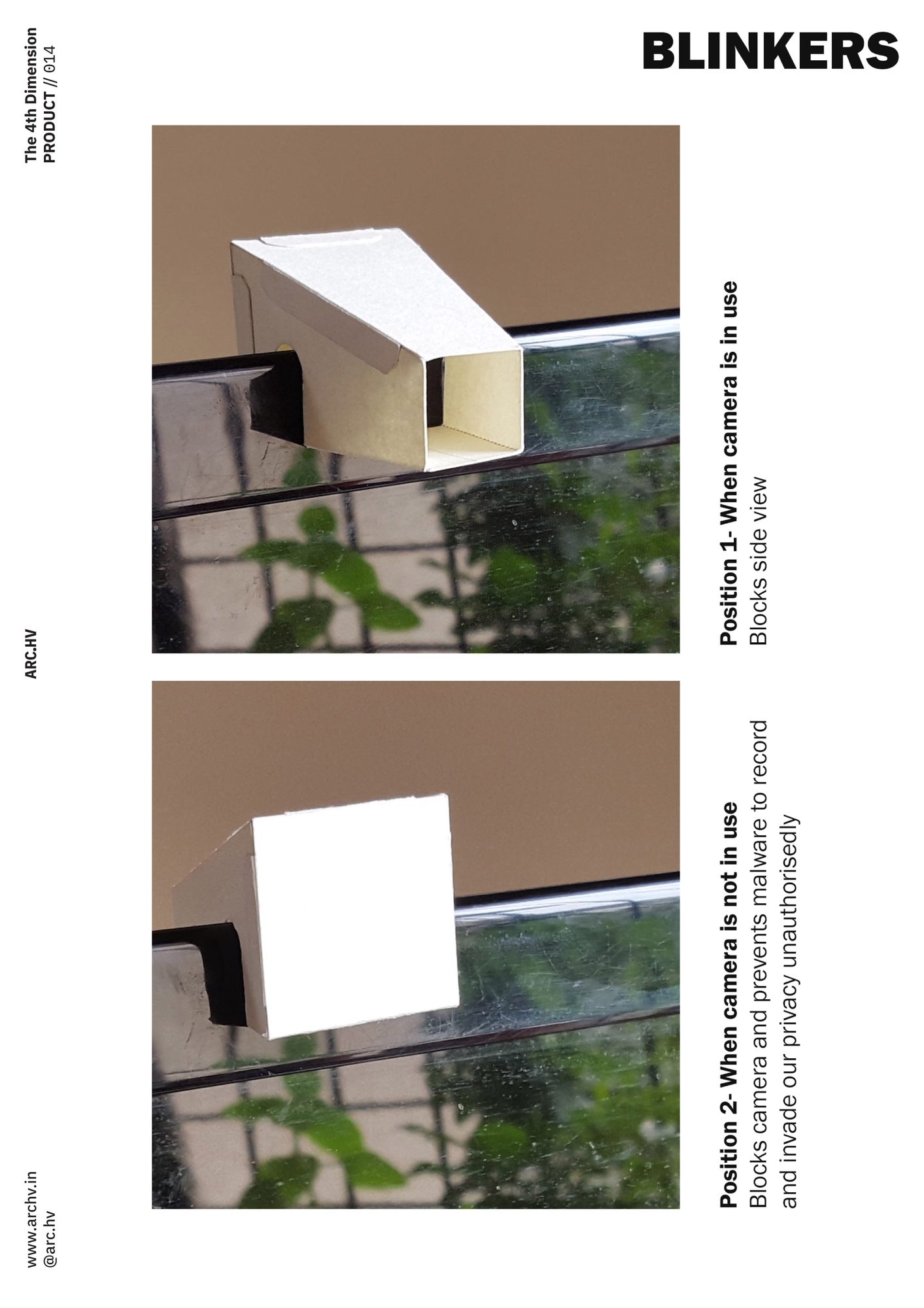

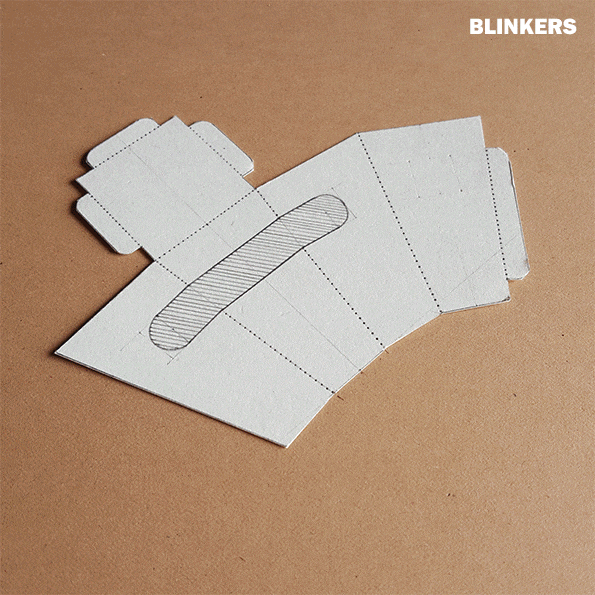

Working from home and online meetings has become a new normal in this pandemic. One disadvantage of attending such online webinars and meetings is letting others peep in our home, which is quite annoying sometimes! This simple product can block the side views and can also block the camera to prevent malware to record and invade our privacy unauthorisedly.

• 45-50(l) x 30(b) x 30(h) mm
• 18mm thk ply
• DWG

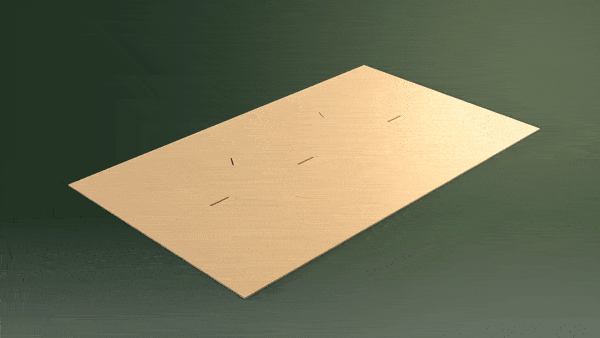

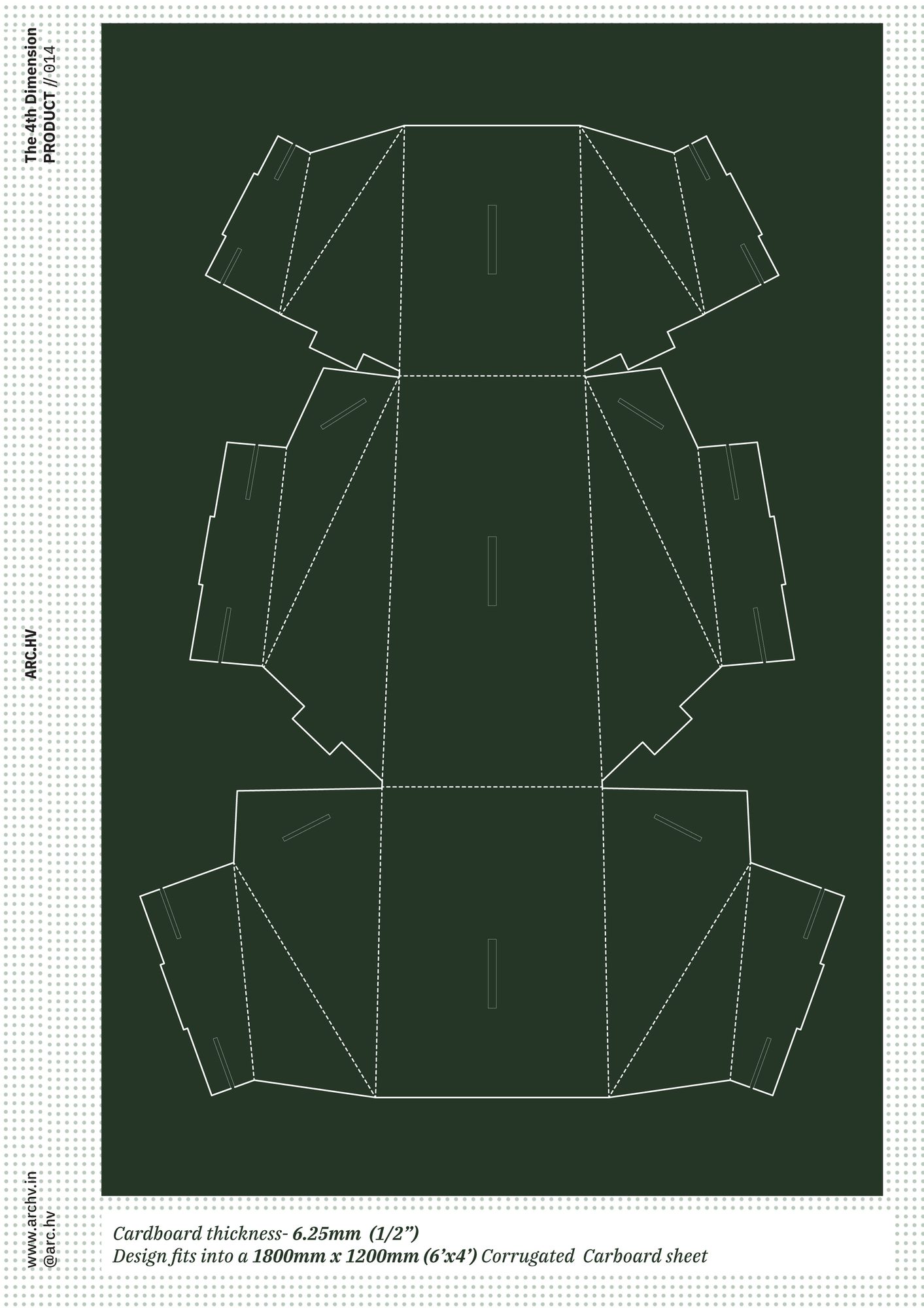

The ALTER

OSL 014 · Amaory Portorreal

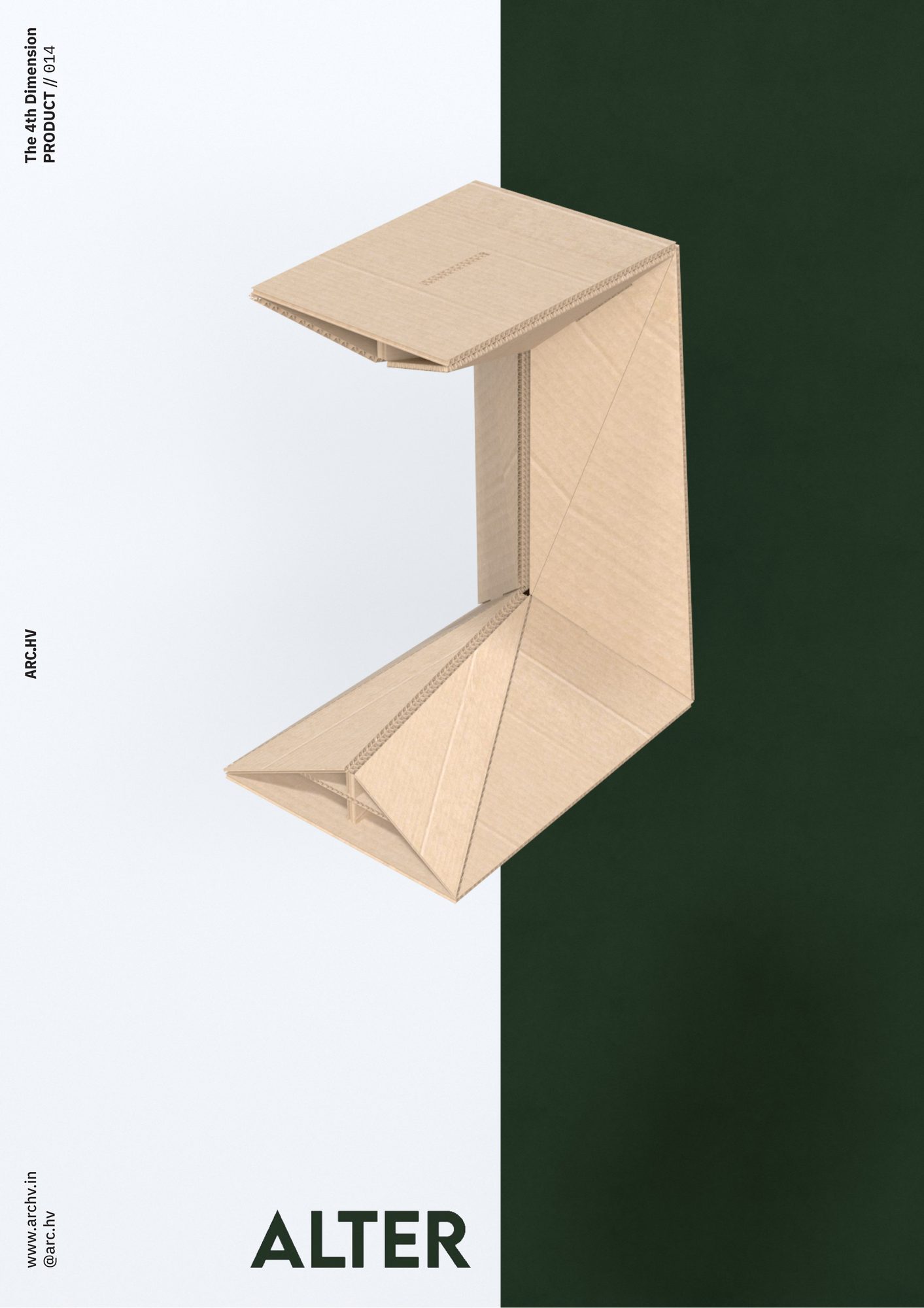

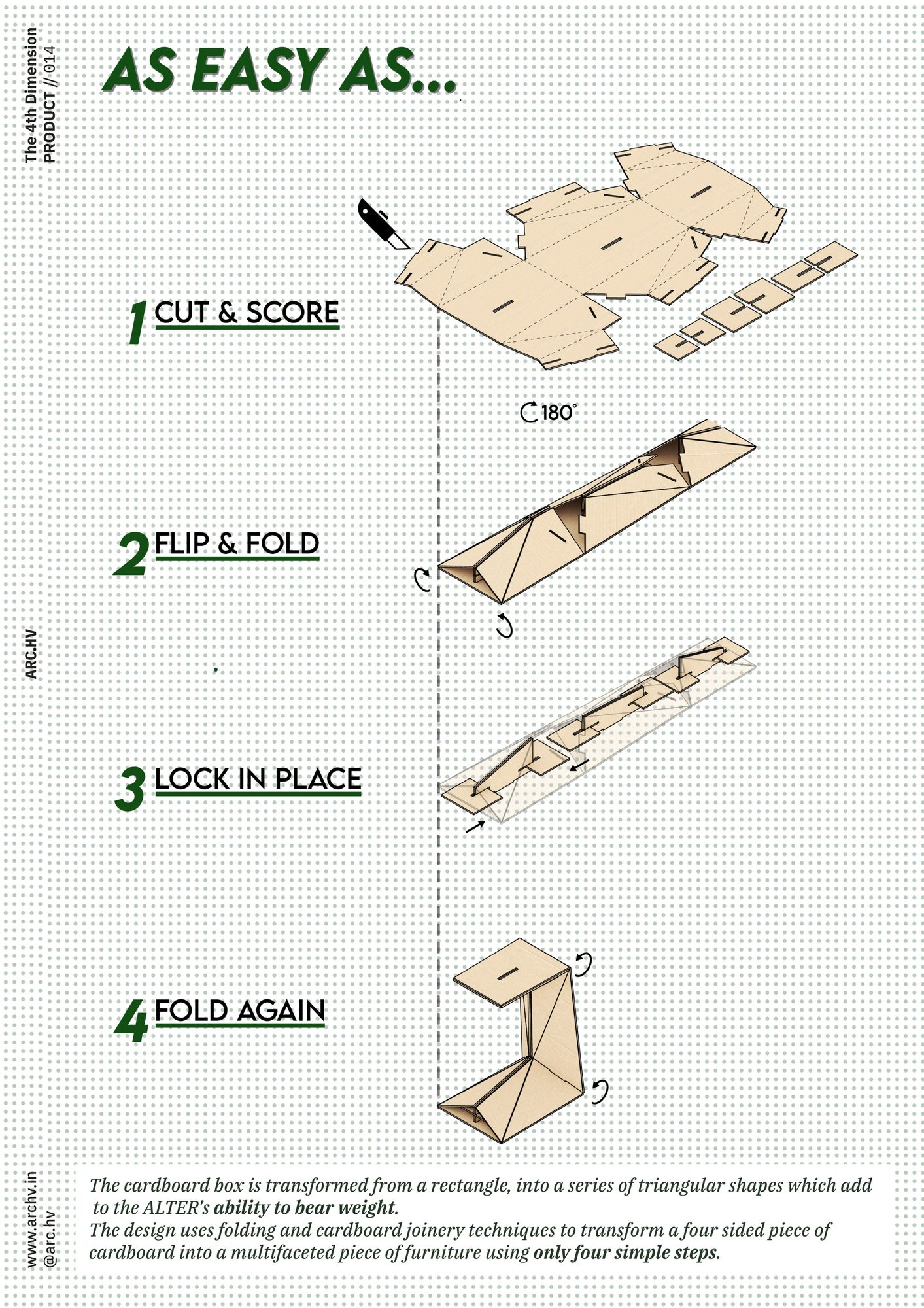

The ALTER is about transformation. It calls upon the trend of upcycling, or creative reuse, in order to transform waste into a new product. An obtuse television cardboard box is transformed into something sleek, sturdy and unique. The idea of creating a piece of furniture to be used while watching a Samsung television further reinforces the connection between the cardboard used to make ALTER, and the television that it once held. The ALTER’s design is angular, mirroring the cardboard box that it's made from, but softened through the sleek slenderness of the design. The cardboard box is further transformed from a rectangle, into a series of triangular shapes which add to the ALTER’s ability to bear weight. The design uses folding and cardboard joinery techniques to transform a four sided piece of cardboard into a multifaceted piece of furniture using only four simple steps.

• 340(l) x 480(b) x 630(h) mm
• 6.25mm thk corrugated card
• DWG

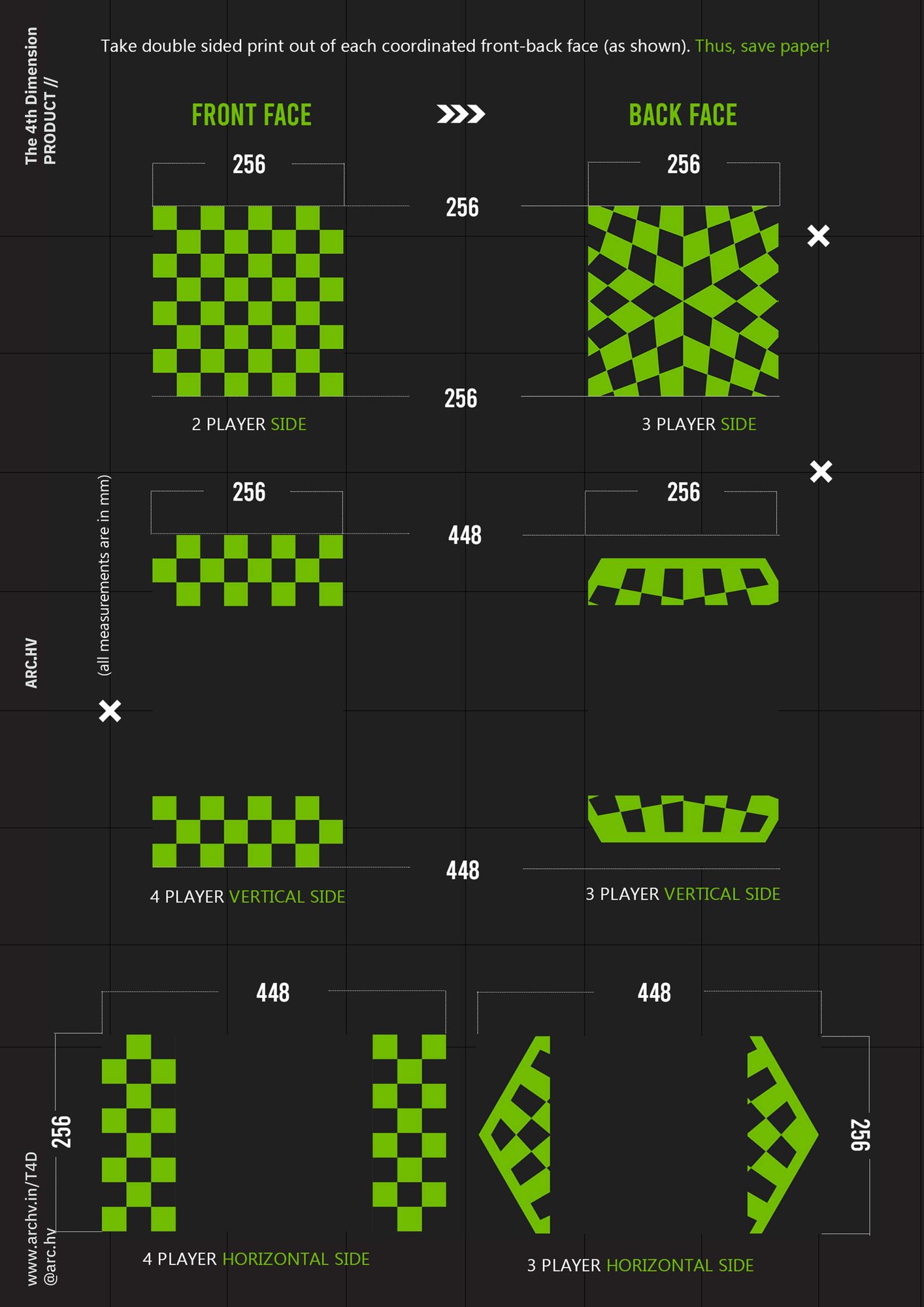

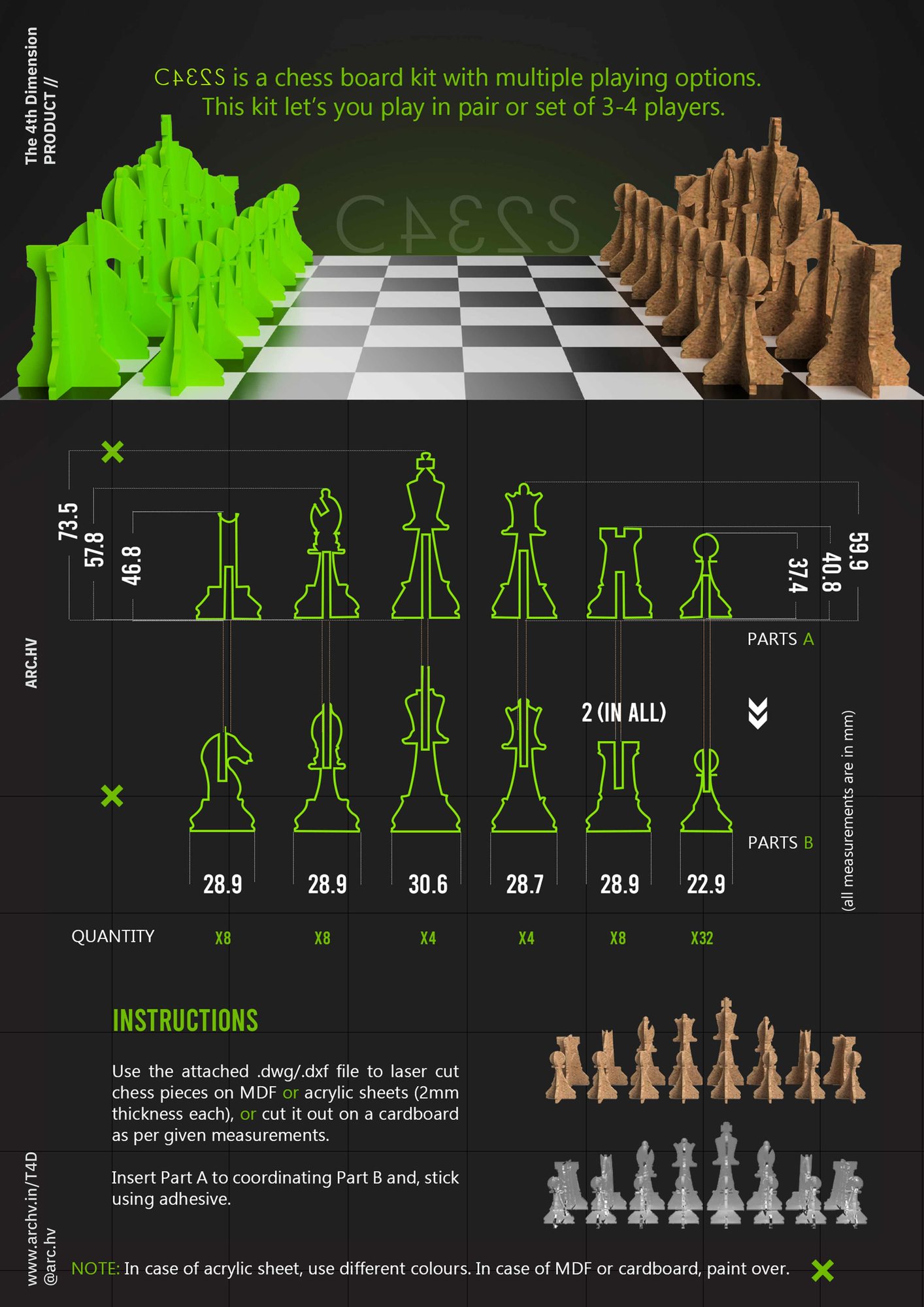

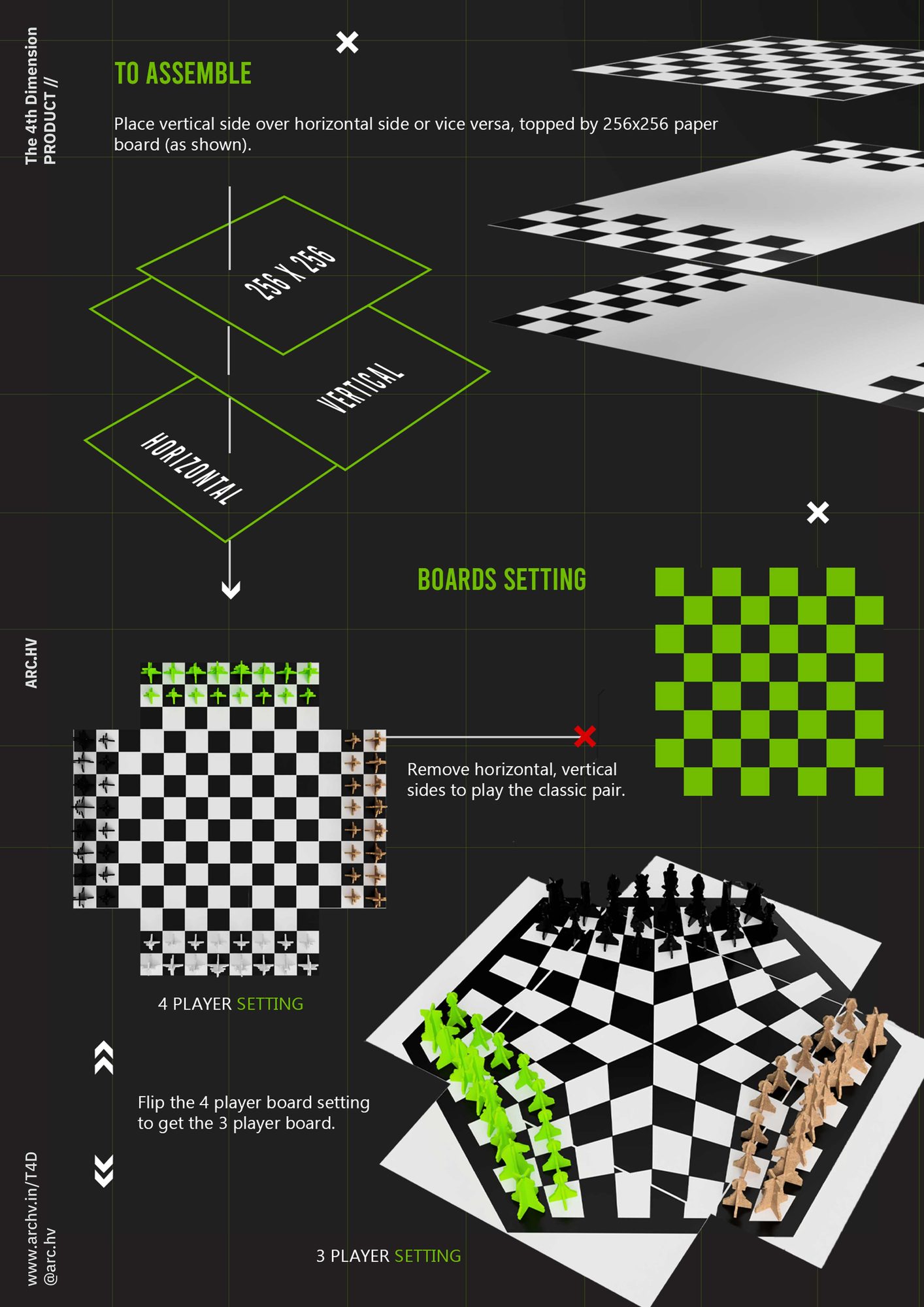

C432S

OSL 015 · Siddhant Bothra (XYZ Design Studio)

A DIY modular chess kit that can be played by a pair or 3-4 players. An attempt to make not so easily available chess modules, buildable, at a very minimal cost.

• NA
• Carboard or acrylic or MDF + Paper
• DXF

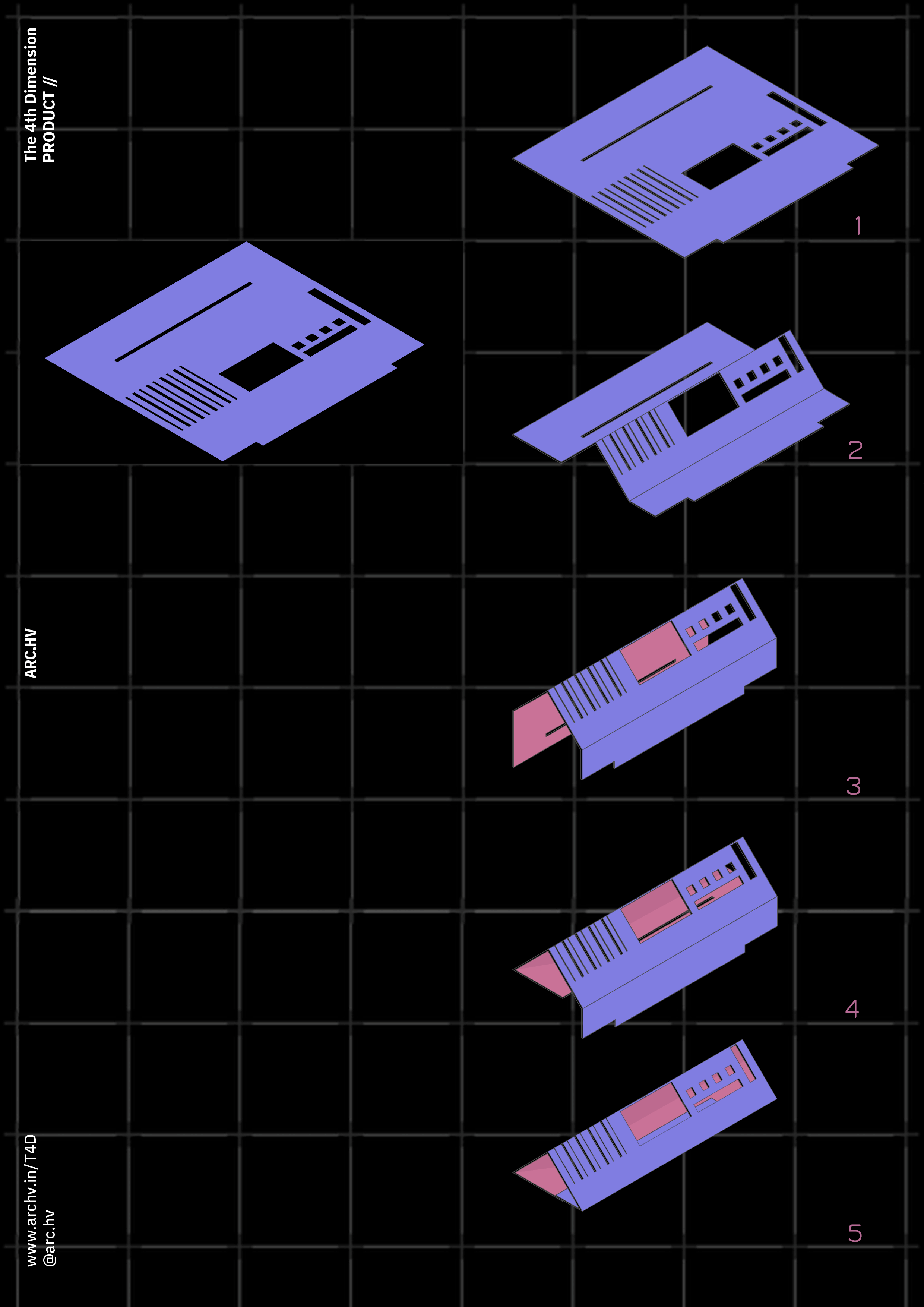

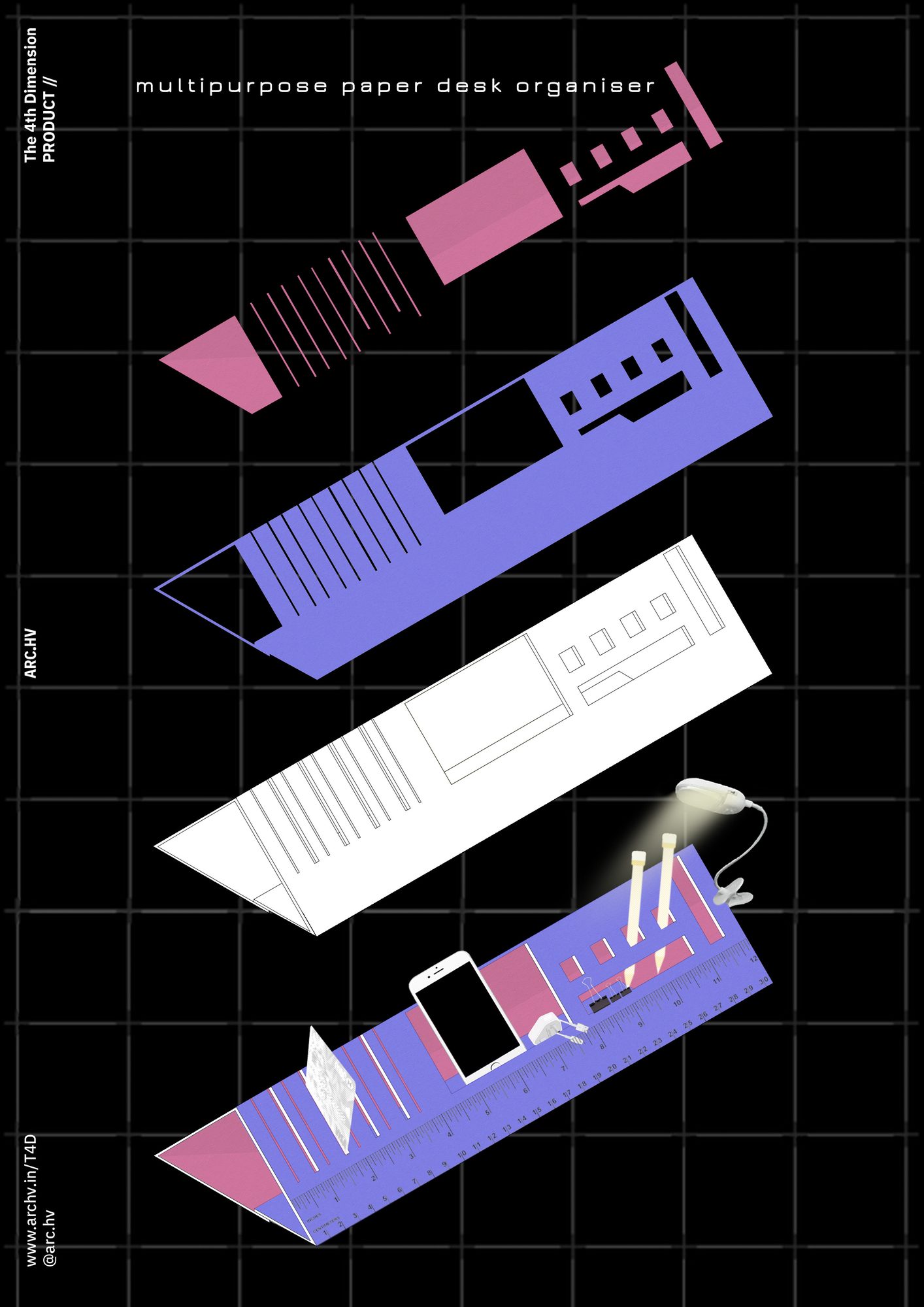

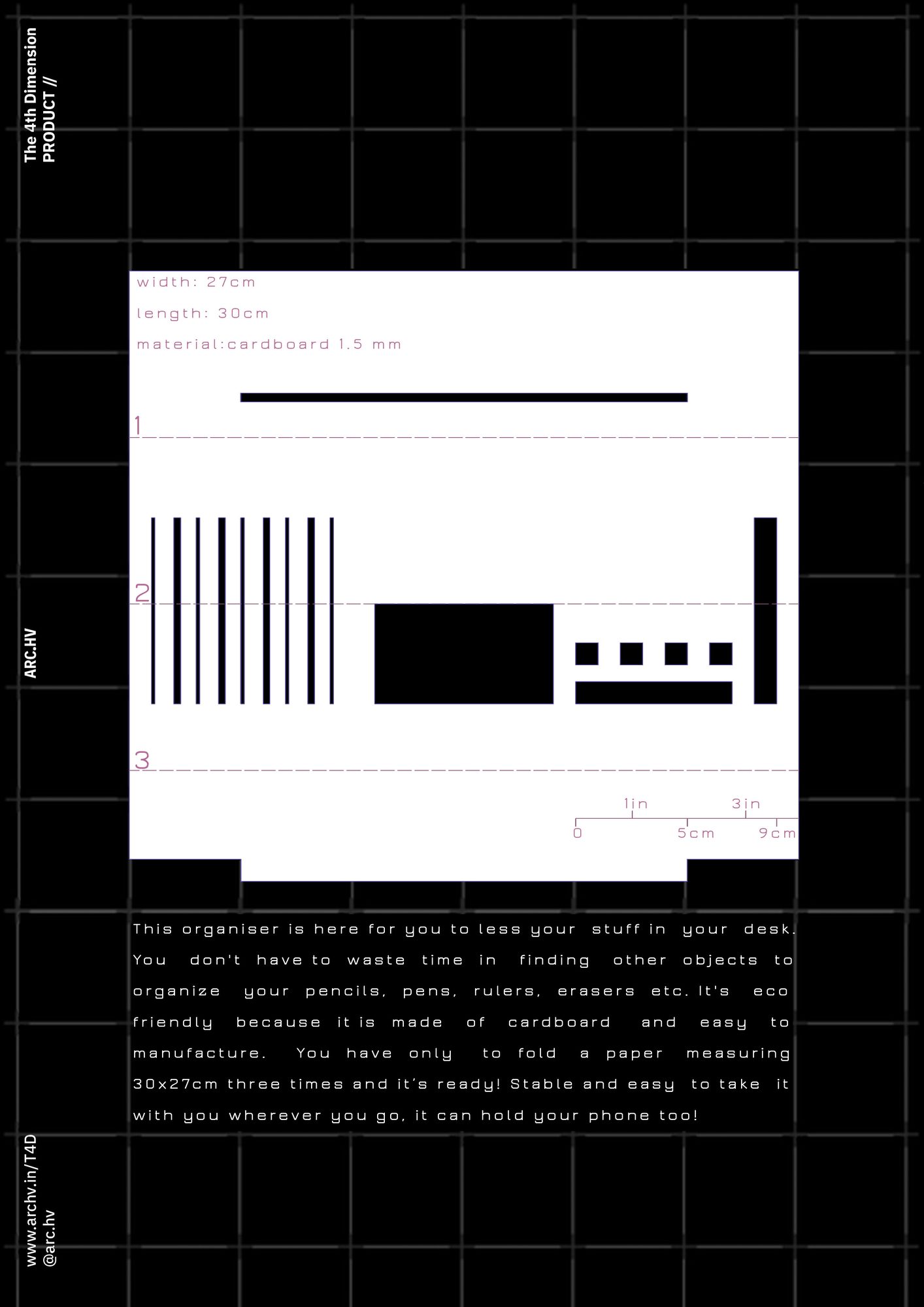

Organiser

OSL 016 · Jenny Andritsou

This organiser is here for you to less your stuff in your desk. You don't have to waste time in finding other objects to organize your pencils, pens, rulers, erasers etc. It's eco friendly because it is made of cardboard and easy to manufacture. You have only to fold a paper measuring 30x27cm three times and it’s ready! Stable and easy to take it with you wherever you go, it can hold your phone too!

• 30cm x 27cm x 1.5mm
• Card
• dwg

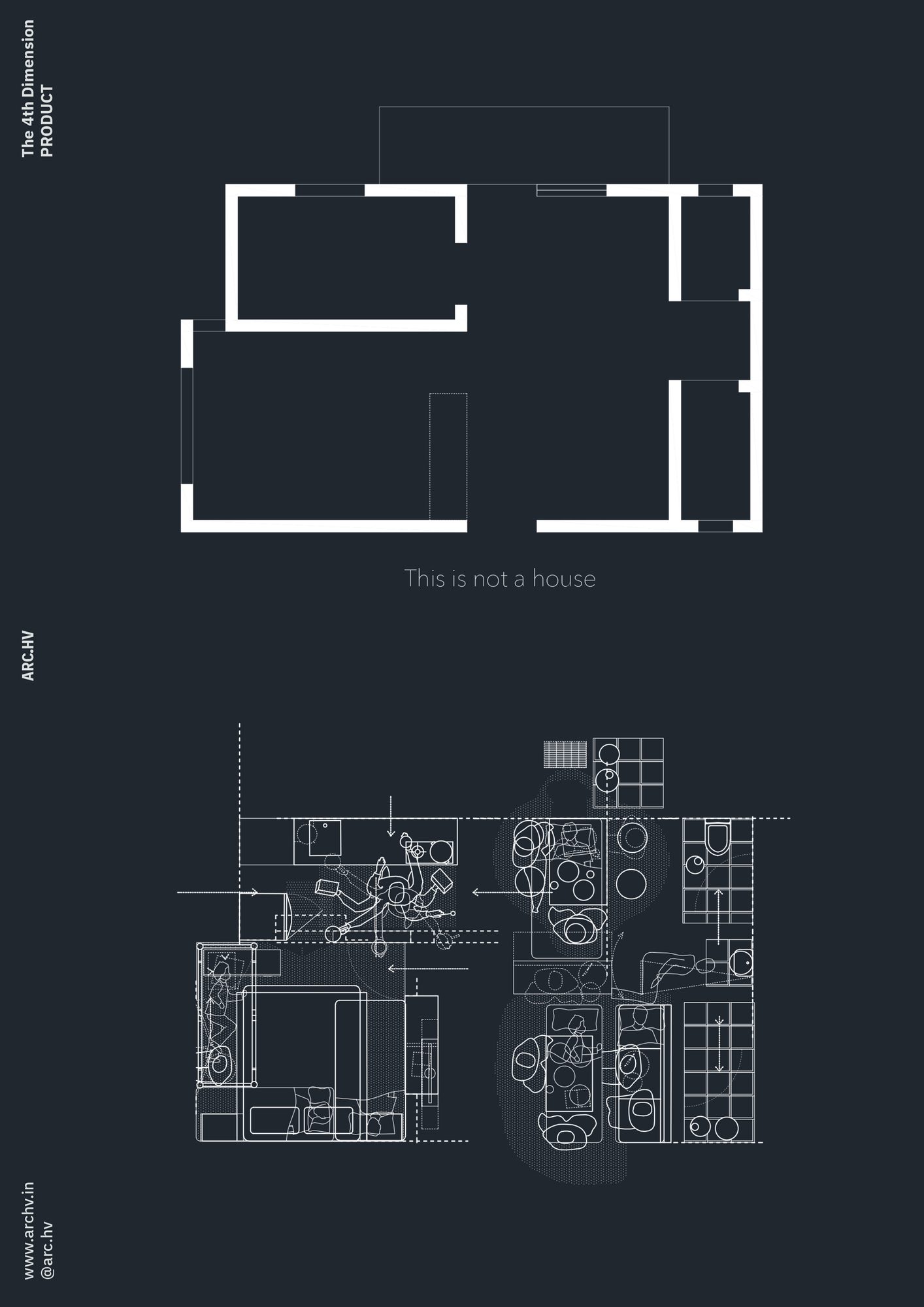

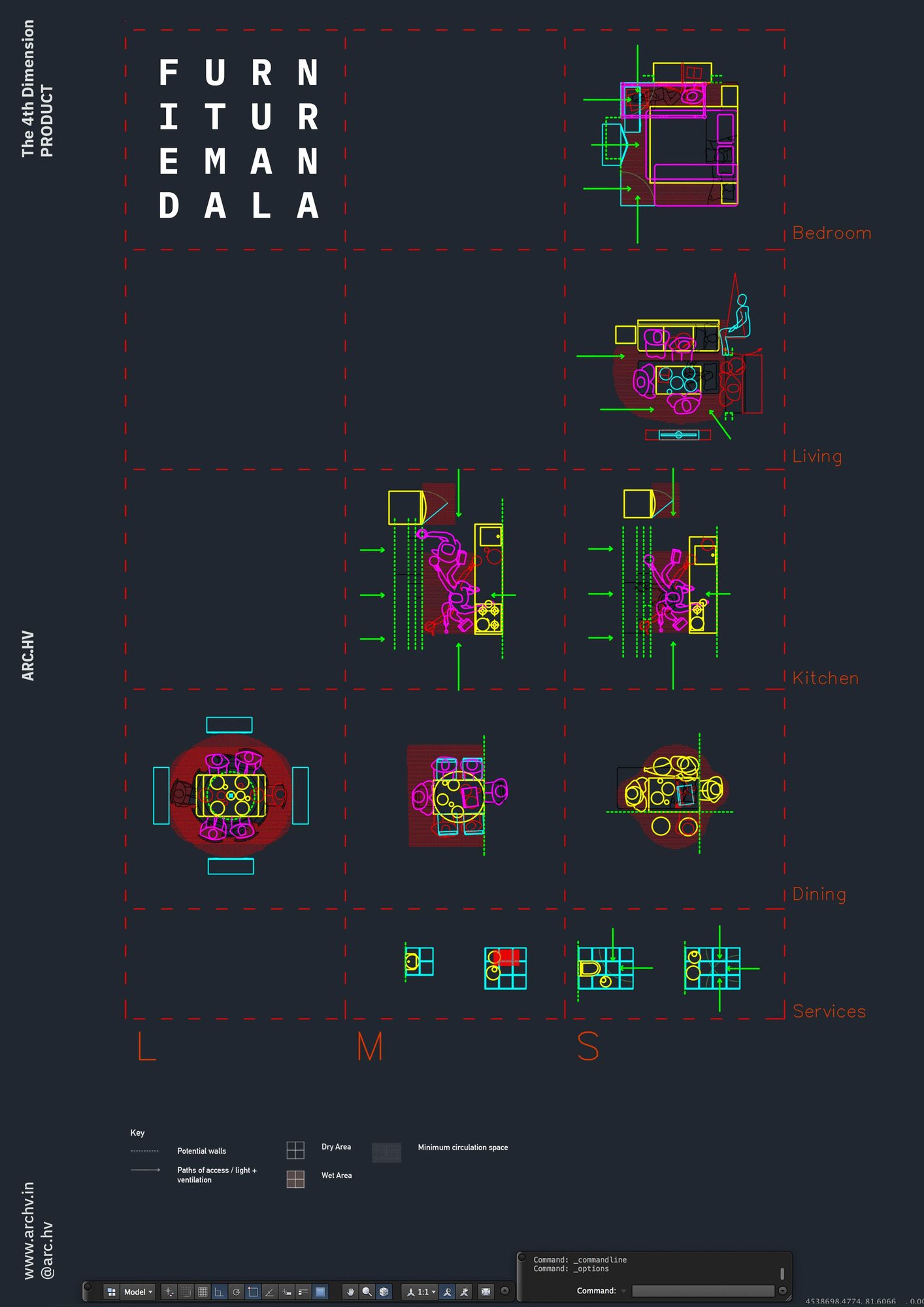

FurnitureMandala

OSL 017 · Chandani Patel

A small table near a window (or TV) can become a site for many activities at different times; a place to eat, to study, as a footrest, an extension of a kitchen platform and at night, a clearing to place a mattress. In this context, Furniture templates attempt to offer a larger imagination of space, time and scale in the vector space of Autocad.

The templates are made by dimensions derived from a choreography of human movements and behaviours; walls and surfaces are suggestions that follow. They can be used as tools for design that have inbuilt in them many possible interpretations of place.

Rules:

1. If an access arrow meets a wall there must be an opening

2. Only circulation space (hatched portions/tiles) of one template may overlap with anothersst, an extension of a kitchen platform and at night, a clearing to place a mattress. In this context, Furniture templates attempt to offer a larger imagination of space, time and scale in the vector space of Autocad.

• NA
• NA
• Dwg
